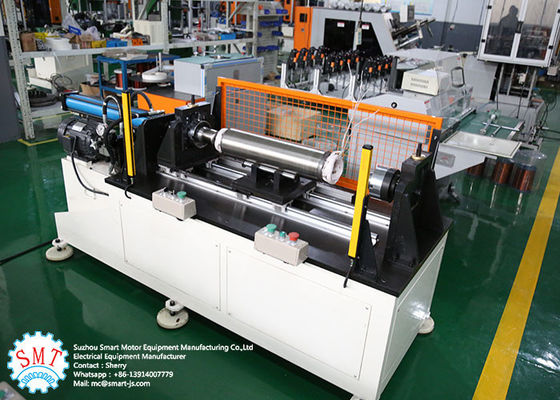

OEM / ODM Horizontal Big Power Stator Coil Winding Machine 4Kw 380V

OEM / ODM Horizontal Big Power Stator Coil Winding Machine 4Kw 380V

OEM / ODM Horizontal Big Power Stator Coil Winding Machine 4Kw 380V

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT - ZJ600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box With a Plastic Bag.
Delivery Time: 40 - 89 days
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 40 - 75 days
Contact Now
Detailed Product Description
Name: Horizontal Big Power Long Stack Length Stator Coil Forming Machine Model: ZJ600
Stator I.D.: 110-210mm Stator O.D.: ≤300mm
Machine Dimension (LxWxH): L3726x W1251 X H2111mm Displacement Of Cylinder: 40L
After-sales Service: Overseas Service Available

Horizontal type Big power long stack length pump stator coil middle forming machine




Customerized service:

Based on your production needs

1. Design the suitable product or production line for you ,OEM and ODM available.

2. We have professional and rich experience engineers in the domestic and overseas.

3. We will wind and test the samples in our plant before delivery



After-sales service:

1, Warranty Period: 1 year

2. Engineers available to service machinery overseas


(1) Main technical data



Stator OD ≤300mm
Stator ID ≤200mm
Stack Height ≤600 mm
Height of Coil ≤70mm
Pitch time ≤30s/pc
Displacement of Cylinder 50L/min
Power supply 380V 50/60Hz 4Kw
Weight ≈2500Kg
Dimension (L)4400×(W)1850×(H)1350mm


(2) Application


It is applied to deep water pump motor and other various type of big dimension stator.

(3) Machine mainfunction and characteristic


This machine is suitable for big power stator, long stack length stator(deep-well pump stator) or other big dimension stator. It is horizontal type with a auto slider. Stator can be moved by lifting device. Tooling adopts flexible principles of inner expansion, outer wrapping and edge forming. It is controlled by PLC. The parameter can be set in the HMI.

(4) Information needed for final forming machine inquiry:


It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Winding drawing
4. Other technical requirement.

If possible, it will better if customer could send us samples.

(5) Competitive advantages


Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
This machine is controlled by PLC. All the parameter could be set on the touch screen,

This machine is suitable for big power stator, long stack length stator(deep-well pump stator) or other big dimension stator. It is horizontal type with a auto slider. Stator can be moved by lifting device. Tooling adopts flexible principles of inner expansion, outer wrapping and edge forming. It is controlled by PLC. The parameter can be set in the HMI.



(6) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(7) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



(8) Suzhou Smart Motor Equipment Manufacturing Co.,Ltd



Located in Suzhou ,a beautiful city of industry , commerce of heart in Yang tze Rive Delta, Suzhou Smart Motor Equipment Manufacturing Co.Ltd is specialized in the R&D manufacturing and sales of induction motor stator machinery ,Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor ,air conditioner motor ,pump motor , coil motor , three-phase motor , fan motor , and compressor motor etc.



Take full advantage of experienced engineers , skillful professional , perfect equipment , strict manufacturing process control and wide coverage service net-work , we are dedicated to provide our customers with the optimized solution to electric motor manufacturing , so far , except the big market share in China , we export our machines to the worldwide countries such as USA Italy , Australia , India , Brazil , Mexico ,Turkey , Tailand , Vietnam Iran etc,and our machines share the great the reputation among customers for its durable , reliable perormance , reasonable price and good after sales.
