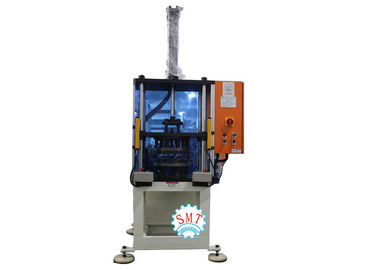

Name: Electric Hoist Motor Stator End Coil Final Forming Machine Model: ZZ160
Stator I.D.: 80-120mm Stator O.D.: 60-120mm
Winder Motor: Stepping Motor Spindle Motor: Three-phase Motor+Phase Motor+AC Driver
Condition:: New OEM: Avaliable

Electric Hoist Motor Stator End Coil Final Forming Machine SMT - ZZ160 -2



With hydraulic transmission and electrical integrated control ,this machine is used for the final forming of small to middle motor stator producing, it conducts the extruding forming to the stator end coil’s OD,ID and height through OD forming sliding block, ID forming expanding core, to achieve the required coil sizes and meet motor assembly condition. Equipped with automatic driving and reversing mechanism for stator station.
fully hydraulic system, industrial PLC design;
independent 3D forming;
tact time≤15s/set;



(1) Main Technical Features



Model ZZ160-2
Stack height ≤190mm
Stator I.D 80-120mm
Stator O.D 60-120mm
Displacement of cylinder 20F
Input 380V/50/60Hz
Power supply 1.5kw
Machine weight About 1000kg
Machine dimension (LxWxH) 1610x 1100x 2310mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.
