Three Phase Motor Stator Automatic Wire Coil Winding Machine

China Three Phase Motor Stator Automatic Wire Coil Winding Machine supplier

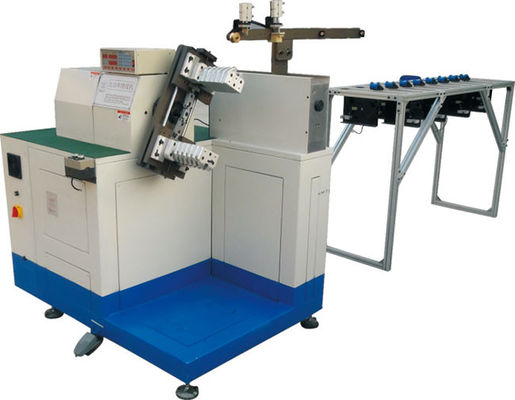

Large Image :  Three Phase Motor Stator Automatic Wire Coil Winding Machine

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO9001 / SGS
Model Number: SMT-R650

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plywood Box or You Can Tell Us.
Delivery Time: 46 - 68 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 46 - 68 days
Detailed Product Description
Name: Big Three Phase Motor Stator Automatic Wire Coil Winding Machine Demoulding: Half-Automatic
Transfer Number: 2-6pcs Power Supply: 220V/50/60Hz 2.2Kw
Winding Head: 2pcs Wire Diameter: 0.4-1.2mm
Effective Length Of The Tooling: ≤410mm Wegiht: 991kg
Color: White/Orange

Ceiling Fan Stator Winding Machine For Small Electrical Motors





Automatic coil winding machine, also known as automatic stator winding machine, is specially designed to automatic wind coils into outer stator slots and is suitable for any specifications of outer slots motor stator. Furthermore, our winding machines not only speed up your production efficiency, but also improve your quality assurance.



(1) Main Technical Parameter



Model R650
Swing diameter ≤450mm
Effective length of the tooling ≤400mm
Parallel wire number ≤16pcs
Wire diameter 0.3-1.2mm
Wire arraying width 400mm
Power supply 220V/50/60Hz 2.2Kw
Machine weight 950kgs
Air Pressure 0.4-0.6MPa
Machine dimension (L)1500*(W)1700*(H)1550mm



(2) The operation steps of this machine


Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.


(3) Machine Main function and Characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Three Phase Motor Stator Automatic Wire Coil Winding Machine

(6) About Smart



Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
