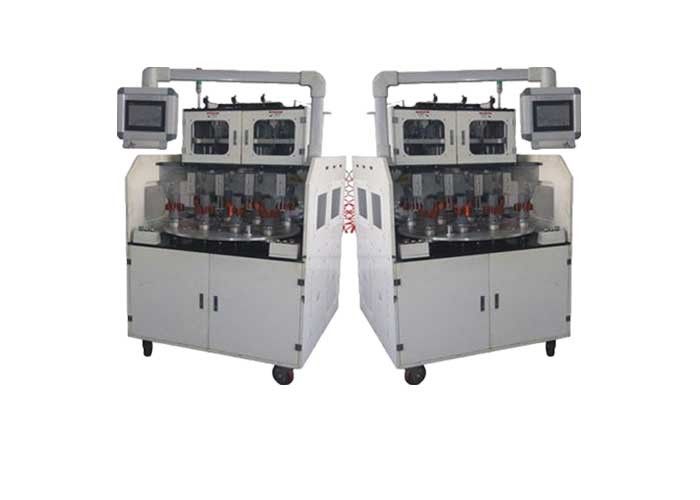

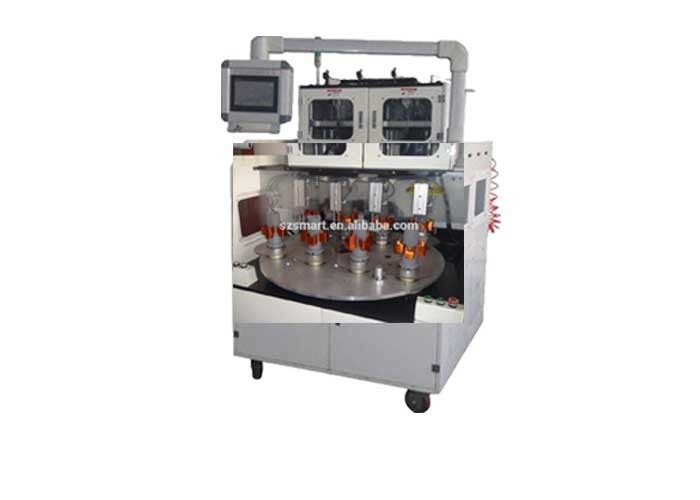

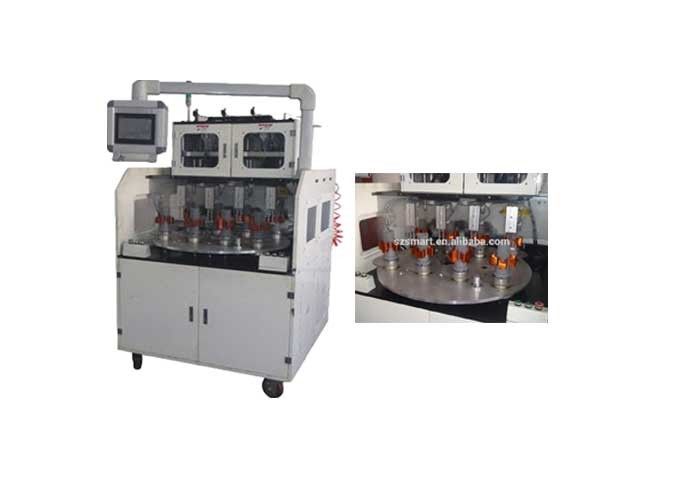

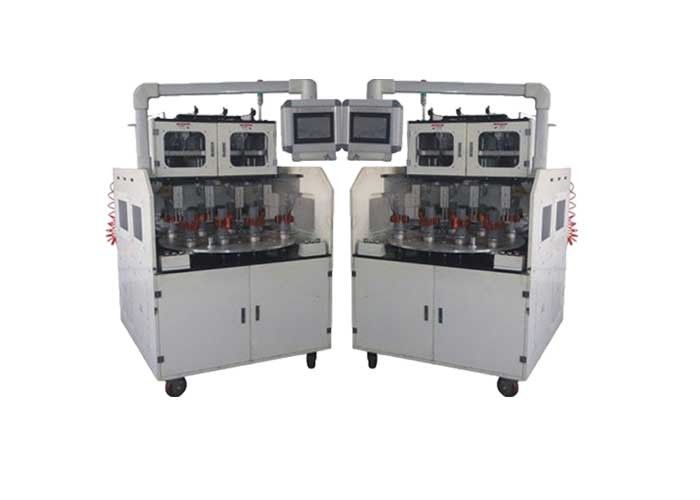

4 Winding Heads Copper / AL Wires Coiling Machine for Making Winding Stators

4 Winding Heads Copper / AL Wires Coiling Machine for Making Winding Stators

    • 4 Winding Heads Copper / AL Wires Coiling Machine for Making Winding Stators
    • 4 Winding Heads Copper / AL Wires Coiling Machine for Making Winding Stators
    • 4 Winding Heads Copper / AL Wires Coiling Machine for Making Winding Stators
    • 4 Winding Heads Copper / AL Wires Coiling Machine for Making Winding Stators
  • 4 Winding Heads Copper / AL Wires Coiling Machine for Making Winding Stators

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / BV / SGS
    Model Number: QLR70

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Price unit: USD; Price is negotiable, it depends on different stator production request.
    Packaging Details: Plywood plate, vacuum package, wrapping film.
    Delivery Time: 55-60 days after placing the order
    Payment Terms: T/T, L/C
    Supply Ability: 5 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Machine: 4 Winding Heads Copper / AL Wires Coiling Machine For Making Winding Stators Model: SMT-QLR70
    Winding Head: Four Wire Dia. Max: Φ1.0mm
    Air Pressure: At Least 0.6MPa N.W: ≈2300Kg

    4 Winding Heads Copper / AL Wires Coiling Machine for Making Winding Stators SMT-QLR70



    Brief Instruction of Machine

    Machine "4 Winding Heads Copper / AL Wires Coiling Machine for Making Winding Stators" is used for winding electric wires to several coils automatically and putting coils into transfer cup orderly.
    It adopts six servo motors to control the motion, like high-speed mold dipping, turntable rotating and transfer cup indexing, etc. It can achieve higher qualification rate and also has high out-put.
    Operators need to stand when operating.



    Equipped with four winding heads and eight working stations with turntable. It can wind coils directly and orderly into transfer cup, which is controlled by six servo motors. If using vertical coil winding machines to wind coils, It will be convenient for inserting the coils of stators with high slot fill factor and small slot opening width. So it can save labor effecitvely.

    (1) Technical Parameters



    Model

    SMT-QLR70

    Winding head

    4pc

    Wire diameter

    Φ0.2mm~Φ1.0mm

    Winding Speed

    ≤3000r/min

    Max stack height

    ≤70mm

    Winding precision

    ±0 turn

    Power supply

    380V/50/60Hz 7Kw

    Air pressure

    ≥0.6MPa

    Weight

    ≈2300Kg

    Dimension

    (L)1350×(W)1000×(H)1800mm




    (3) Main Specifications



    1. A kind of four-head and double-station automatic winding machine;

    2. It can wind four phases at one time, which can wind single and multiple wires.

    3. Automatic put the coil into transfer former orderly;

    4. Six spindles are controlled by servo motors: the main spindle, high-speed mold dipping, hooking and cutting wire, turntable rotation and transfer cup index are all controlled by servo motors;

    5. Especially suitable for stators with high slot fill factor and small slot opening;

    6. Winding mode such as automatic skip, automatic cutting and automatic indexing can be finished successively at one time;

    7. Parameters can be set in human-machine interface, winding tension is adjustable;

    8. Obtain continuous or discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding;

    9. It saves labor and has high efficiency.


    (4) Services

    We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.
    Design & manufacturing are as customer's request. For example, shape design, components brand and machine color,etc. can be specilized if customer has special request. Moreover, we can help to arrange the layout of machines of customer site when necessary.
    Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.

    (5) Production Line Service

    With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.
    So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
