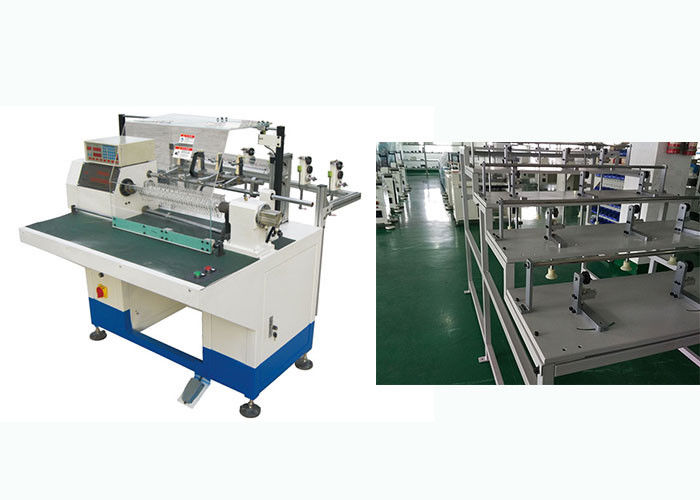

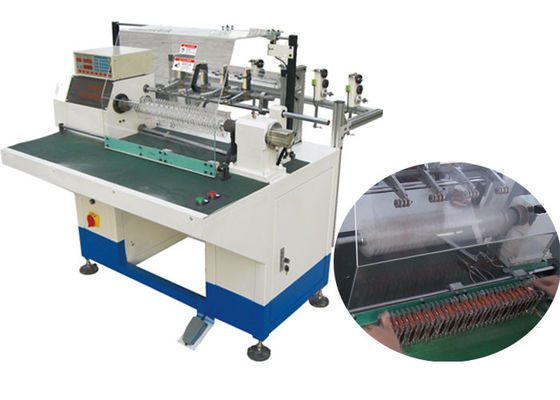

Hot Sale Induction Long Motor Automatic Stator Winding Machine SMT - R160

Hot Sale Induction Long Motor Automatic Stator Winding Machine SMT - R160

    • Hot Sale Induction Long Motor Automatic Stator Winding Machine SMT - R160
    • Hot Sale Induction Long Motor Automatic Stator Winding Machine SMT - R160
  • Hot Sale Induction Long Motor Automatic Stator Winding Machine SMT - R160

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001/SGS/CE
    Model Number: SMT-R160

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Wooden Box Packaging
    Delivery Time: 32 - 58 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1pcs / 30 - 58 days
    Contact Now
    Detailed Product Description
    Name: Hot Sale Induction Motor Stator Coil Winding Machine Color: White
    Wire Speed: ≤3200r/min Flier: 200mm
    Transfer Number: 2-6pcs Power Supply: 220v/50/60Hz 7Kw
    Weight: 750kg Dimension: (L)1800X(W)1100X2200mm
    Winding Head: 1-8 Air Pressure: ≥0.MPa
    Transfer Distance: ≥170mm

    Hot Sale Induction Long Motor Automatic Stator Winding Machine Automatically





    (1) Main Technical Parameter



    Item Data
    Model R160
    Wire diameter Φ0.08~Φ1.0mm
    Max.Rotation Speed 3200r/min
    Suitable wire copper/aluminum
    Max. Transfer distance ≥170mm
    Diameter of frame Φ20-Φ120mm
    Power supply 220V, single phase, 50/60Hz, 1.5kW
    Machine weight About 750kg
    Machine dimension (LxWxH) 1550 x 1250x 1300mm





    (2) Application:


    This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

    (3) Machine main function and characteristic


    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



    (4) OEM/ODM Profile


    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



    (5) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.





    (6) About Our Factory



    Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
    Hot Sale Induction Long Motor Automatic Stator Winding Machine SMT - R160
