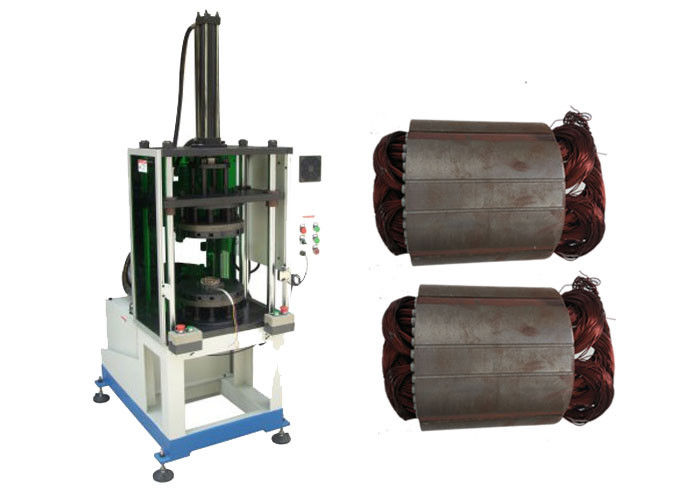

CNC Controlled Motor Stator Forming Machine ISO / SGS Audit

CNC Controlled Motor Stator Forming Machine ISO / SGS Audit

    • CNC Controlled Motor Stator Forming Machine ISO /  SGS Audit
    • CNC Controlled Motor Stator Forming Machine ISO /  SGS Audit
  • CNC Controlled Motor Stator Forming Machine ISO /  SGS Audit

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT-ZZ160-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box with sealing.
    Delivery Time: 7-9 weeks
    Payment Terms: T/T , L/C
    Supply Ability: 1pcs / 7-9 weeks
    Contact Now
    Detailed Product Description
    Name: Automatic CNC Controlled Motor Stator Coil Winding Final Forming Machine Stator I.D.: 80-120mm
    Stator O.D.: 60-120mm Winder Motor: Stepping Motor
    Spindle Motor: Three-phase Motor+Phase Motor+AC Driver Coils Shaping: Stator Forming
    Color: White Warranty: One Year
    Displacement Of Oil Pump: 40F

    CNC Controlled Motor Stator Coil Forming Machine ISO / SGS Audit





    Transformer winders consists of a stepper motor to creat high winding speed. A spool of wire is affixed to the spool arm, and the wire is placed along tiny rollers for smooth movement. Winding parameters such as speed, wire pitch, turns and section winding are programed to the machine. Once the machine is swithed on, it begins the winding process.





    (1) Main Technical Features



    Model ZZ160-2
    Stack height ≤190mm
    Stator I.D 80-120mm
    Stator O.D 60-120mm
    Displacement of cylinder 20F
    Input 380V/50/60Hz
    Power supply 1.5kw
    Machine weight About 1000kg
    Machine dimension (LxWxH) 1610x 1100x 2310mm



    (2) Application



    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


    (3) Machine Main Characteristic



    This machine adopts whole hydraulic system and PCL program.

    This machine can adjust the forming stack length by changing washer.

    Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

    Production capacity ≤13s/set (exclude loading/unloading time)

    Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

    This machine adopts safety grating protection system. Operator need to stand when operating.

    Machine adopts two hands simultaneously start button to ensure safety.

    Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



    (4) OEM/ODM



    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



    (5) Production Line Profile



    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    CNC Controlled Motor Stator Forming Machine ISO /  SGS Audit

    (6) About Us



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
