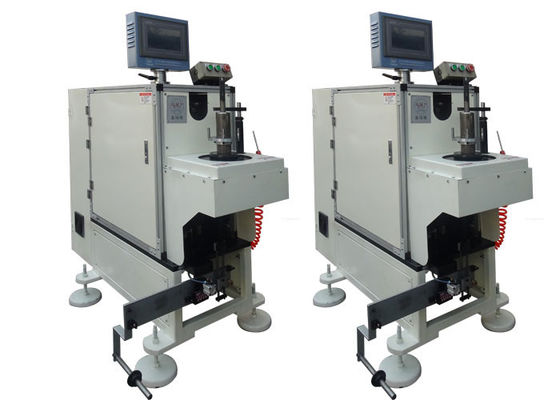

SMT - DB100 Lacing Machine / Double Side Stator Coil Machine

SMT - DB100 Lacing Machine / Double Side Stator Coil Machine

    • SMT - DB100 Lacing Machine / Double Side Stator Coil Machine
    • SMT - DB100 Lacing Machine / Double Side Stator Coil Machine
  • SMT - DB100 Lacing Machine / Double Side Stator Coil Machine

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT - DB100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Wooden Case Suitable For Sea Transportation
    Delivery Time: 7- 11 weeks
    Payment Terms: T/T , L/C
    Supply Ability: 1pcs / 7-10 weeks
    Contact Now
    Detailed Product Description
    Name: Automatic Lacing Machine Double Side Stator Coil Machine Stack Height: 10-100mm
    Power Supply: 220V/50/60Hz 2Kw Diameter Of Stator: 80mm-160mm
    Color: Orange/White/Blue Customized Service: Available
    After-Sales Service: Overseas Service Center Available Lacing Speed: 0.8 S/s

    Automatic Lacing Machine Double Side Stator Coil Machine / Lacing Machine SMT - DB100





    This stator coil end lacing machine adopts vertical loading structure, It is equipped with two needles, each needle for laing each side of stator coils. The needle movement is controlled by servo drive system to complete the lacing work. Main spindle speed is adjustable. The lacing type, lacing slot by slot, interval slot lacing and fancy lacing can be set inthe Industrial programmable PLC and HMI. This lacing machine is suitable for lacing multi-species, less yield or more lead wire stator. It has a mature and advanced technology; the machine quality is reliable; and it is easy to operate and maintain.



    (1) Main Technical Information



    Model DB100
    Stack Height 10-100mm
    Stator I.D. 35-120mm
    Stator O.D. ≤160mm
    Height of coil ≤40mm
    Lacing Mode Slot by slot/interval slot/Fancy lacing
    Lacing Speed about 0.7s/s
    Power Supply 220V/50/60Hz 2Kw
    Weight 600kgs
    Machine dimension (L)1000*(W)600*(H)1150mm



    (2) Advantage



    This machine adopts servo driven system, CNC control design and HIM program.

    The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

    Main spindle adopts servo control system. The rotation speed can be set.

    Two needles driven by servo system lace upper and lower coil simultaneously.

    Machine can automatically feed thread and cut thread. There is no need to tie a knot.

    Tooling change is fast and convenient. Stator stack length range is 50-130mm.

    Lacing tension can be set,

    Production capacity ≤1s/slot.

    Should be no copper wire snap and wire enamel broken.

    Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

    his machine adopts safety grating protection system. Operator need to stand when operating.

    Machine adopts two hands simultaneously start button to ensure safety.


    (3) Machine Main Characteristic



    1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

    2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

    3. This machine is suitable for the big stator with high winding over-hang.

    4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.



    (4) OEM/ODM



    The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.

    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



    (5) Production Line Profile



    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    SMT - DB100 Lacing Machine / Double Side Stator Coil Machine

    (6) About Suzhou Smart motor Equipment Manufacturing Co.,Ltd



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
