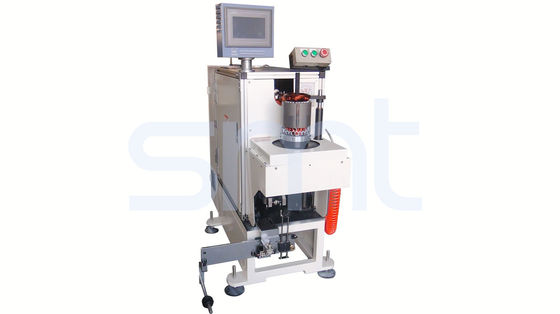

Single Side High Efficiency Coil Lacing Machine , Automatic Stator Winding Machine

Single Side High Efficiency Coil Lacing Machine , Automatic Stator Winding Machine

Single Side High Efficiency Coil Lacing Machine , Automatic Stator Winding Machine

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT - DB100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 65 - 75 months
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 65 - 75 months
Contact Now
Detailed Product Description
Name: Auto Double Sides Motor Stator Coil Lacing Machine Stator O.D.: ≤180mm
Weight: 700kgs Machine Dimension: (L)1000*(W)600*(H)1250mm
Specification: Customized Working Station: Double
Warranty: 12 Months Demoulding: Automatic

Auto Double Sides Motor Stator Coil Winding Machine ISO / SGS Audit





Safety, quality and efficiency are the cornerstones of our lacing machine. The end turns are laced with a "diamond" stitch pattern. Both sides are laced at the same time and a real knot is being tied at the end.
It is equipped with two needles, each needle for laing each side of stator coils. The needle movement is controlled by servo drive system to complete the lacing work. There are no dangerous manual manipulations of the lead ends necessary. Eliminating the major risk for injuries at a lacing machine.



(1) Main Technical Information



Model DB100
Stack Height 80-160mm
Stator I.D. 40-120mm
Stator O.D. ≤180mm
Height of coil ≤50mm
Lacing Mode Slot by slot/interval slot/Fancy lacing
Lacing Speed About 0.8s/s
Power Supply 220V/50/60Hz 2Kw
Weight 700kgs
Machine dimension (L)1000*(W)600*(H)1250mm



(2) Advantage



This machine adopts servo driven system, CNC control design and HIM program.

The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

Main spindle adopts servo control system. The rotation speed can be set.

Two needles driven by servo system lace upper and lower coil simultaneously.

Machine can automatically feed thread and cut thread. There is no need to tie a knot.

Tooling change is fast and convenient. Stator stack length range is 50-130mm.

Lacing tension can be set,

Production capacity ≤1s/slot.

Should be no copper wire snap and wire enamel broken.


(3) Machine Main Characteristic



1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

3. This machine is suitable for the big stator with high winding over-hang.

4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.



(4) OEM/ODM



The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Profile



This lacer machine is suitable for stator coil to do automatic lacing process. Stator is loaded on this coil lacing machine vertically; Machine is PLC programming. The wokring process, such as single-needle and single-side automatic lacing; needle transpositioning, hooking, are all controlled by servo system. The machine spindle adopts frequency speed control. The lacing type, like slot by slot lacing, intercal lacing, and fancy lacing could be achieved by setting in human-machine interface. This lacer manchine is especially applied to multi sizes, low output or more lead stator winding lacing.

Single Side High Efficiency Coil Lacing Machine , Automatic Stator Winding Machine

(6) About Suzhou Smart motor Equipment Manufacturing Co.,Ltd



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
