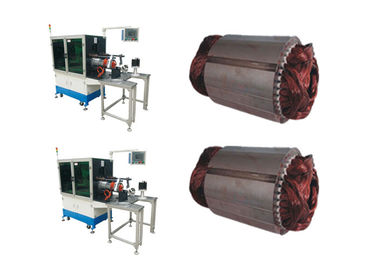

Fan Motor Horizontal Type Stator Coil Winding Inserting Machine SMT - KW300

Fan Motor Horizontal Type Stator Coil Winding Inserting Machine SMT - KW300

  • Fan Motor Horizontal Type Stator Coil Winding Inserting Machine SMT - KW300
Fan Motor Horizontal Type Stator Coil Winding Inserting Machine SMT - KW300
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-KW300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box With Sealing
Delivery Time: 9 - 10 weeks
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 8 - 9 weeks
Contact Now
Detailed Product Description
Name: Fan Motor Horizontal Type Stator Coil Winding Inserting Machine SMT - KW300 Model: KW300
Stator I.D.: 110-210mm Stator O.D.: 175-300mm
Height Of Edge Folded: 3-10mm Power Supply: 380V/50/60Hz 3Kw
Tooling Travel: ≤70mm Machine Dimension: (L)1100*(W)2010*(H)2020mm
Package: Plywood Box With Sealing
High Light:

Coil Insertion Machine

,

Stator Winding Inserting Machine

,

Horizontal Type Stator Coil Inserting Machine

Fan Motor Horizontal Type Stator Coil Winding Inserting Machine SMT - KW300





1. More suitable for winding the stator coil embedded in a longer line, after a good embedded
coil windings arranged in neat rows.
2. Coil winding wire is not easy to injury, the machine uses a needle to thread embedded insulating paper
and disposable embedded in the stator coil, high-speed embedded line efficiency.
3. The machine has a manual, single-step, automatic three kinds of work, to facilitate the operator debugging
and automatic operation.
4. The machine uses a touch screen display, elegant, easy to operate.



(1) Main Technical Features



Model KW300
Stator I.D. 110-210mm
Stator O.D. 175-300mm
Stack Height ≤250mm
Tooling Travel ≤70mm
Appropriate Wire Diameter 0.2-1.2mm
Slot number range 8-48slot
Power Supply 380V/50/60Hz 4Kw
MOQ 1 set Motor Wire Inserting Machine
Machine dimension (L)1100*(W)2010*(H)2020mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.


(3) Our Service



Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Fan Motor Horizontal Type Stator Coil Winding Inserting Machine SMT - KW300 0

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
