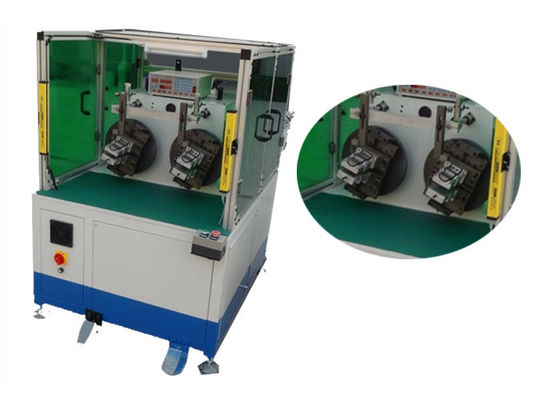

1.5Kw Stator Winding Machine / Air Conditioner Motor Coil Winding Machine

1.5Kw Stator Winding Machine / Air Conditioner Motor Coil Winding Machine

1.5Kw Stator Winding Machine / Air Conditioner Motor Coil Winding Machine

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO9001 / SGS
Model Number: SMT-WR100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case Suitable for Sea Transportation.
Delivery Time: 44-78 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 44-77 days
Contact Now
Detailed Product Description
Name: Air Conditioner Motor Coil Winding Machine / Stator Winding Machine Flier: 200mm
Transfer Number: 2-6pcs Power Supply: 220V/50/60Hz 1.5Kw
Winding Head: 2 Air Pressure: 0.6-0.7Mpa
Wire Diameter: 0.15-0.9mm Weight: 860kg

1.5Kw Stator Winding Machine / Air Conditioner Motor Coil Winding Machine





1. The machine should be installed in the environment with clean air, and suitable humidity.

2. The stepping motor should be keep clean, avoid impaction by hard things.

3. Regularly lubrication. This machine adopts imported lubrication system; fill the oil tank with 40 # oil. It can be judged whether it needs refuel or not through view hole.

4.The critical part of the machine adopts imported high-precision dustproof bearings, normally, it don't need to maintain. If it can't rotate smoothly or choked, need to replace bearings.

5. All of the cylinder are oil-free lubrication types, normally, don't need to add oil to the oil sprayer, while you need to fill the filter with water.

6. The magnetic switch on the cylinder body and the proximity switches on the machine don't need to be adjusted.

7. Don't impact, knock, pierce or press the PLC touching screen and the frame with big force.



(1) Main Machine's Information



Model WR100
Wire Diameter 0.15-0.8mm
Rotating Speed 800r/min
Winding head 2pcs
Swing diameter 250mm
Max. winding distance 160mm
Air Pressure 0.4-0.7Mpa
Power Supply 220V/50/60Hz 1.5Kw
MOQ 1pcs
Dimension (L)1050*(W)1800*(H)1500mm



(2) The operation steps of this machine


Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

(3) Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

1.5Kw Stator Winding Machine / Air Conditioner Motor Coil Winding Machine

The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
