Big Dimension Stator Winding Machine Stator Coil Winding Machine SMT - DR1200

Big Dimension Stator Winding Machine Stator Coil Winding Machine SMT - DR1200

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO9001/SGS
Model Number: SMT-DR1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box Packaging Fit for Your Machine.
Delivery Time: 31 - 55 days
Payment Terms: T/T, L/C, Western Union, D/A
Supply Ability: 1pcs / 30 - 55 days
Contact Now
Detailed Product Description
Name: Big Dimension Stator Coil Winding Machine Color: As Per Customer Requirement
Swing Dia: ≤900mm Flier: 200mm
Transfer Number: 2-6pcs Power Supply: 220v/50/60Hz 3Kw
Weight: 1000kg Dimension: 2300x 2200 X 2000mm
Winding Head: 8pcs HS Code: 8479811000

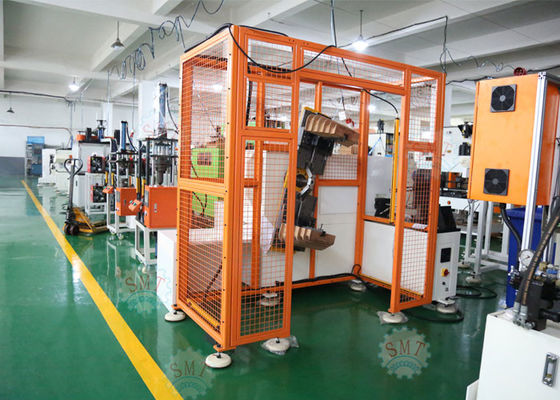

Big Frame Size Electric Automatic Stator Winding Machine / Winder SMT - DR1200





Big Stator Coil Winding Machine adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. This Big Coil Winding Machine is suitable for winding the coil for big power motor. Big Stator Coil Winding Machine could produce different dimension coils which is for same series size stator by adjusting the tooling, and tension is adjustable.



Information needed for moto coil winding machine


It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.



(1) Main Technical Date



Item Data
Model DR1200
Swing Diameter ≤900mm
Wire diameter 0.4 - 1.5mm
Paralle Wire No. ≤ 40pieces
Air Pressure 0.4 -0- 0.6 MPa
Power supply 220V/ 50/60Hz, 3kw
Machine weight About 1100kg
Machine dimension (LxWxH) 2300x 2200 x 2000mm



(2) Application:
This machine is suitable for 2 poles, 4 poles coils winding.

(3) Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



(6) About Our Factory



Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
