Double Head Automatic Stator Winding Machine with 6 Slots / 9 Slots

Double Head Automatic Stator Winding Machine with 6 Slots / 9 Slots

    • Double Head Automatic Stator Winding Machine  with 6 Slots / 9 Slots
    • Double Head Automatic Stator Winding Machine  with 6 Slots / 9 Slots
  • Double Head Automatic Stator Winding Machine  with 6 Slots / 9 Slots

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001/SGS/CE
    Model Number: SMT-LR150

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Wooden Case Suitable for Sea Transportation.
    Delivery Time: 47 - 57 days for 1set
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs/ 45 - 57 days
    Contact Now
    Detailed Product Description
    Name: Automatic Stator Coil Winding Machine AC / DC Electrical Series Motor Wire Speed: ≤3000r/min
    Transfer Number: 2-6pcs Winding Head: 1-2pcs
    Max Stack Height: ≤70mm Mould Life: >1,000,000 Shots
    Function: High Temperature Resistance Weight: 1951kg

    Double Head Automatic Stator Winding Machine with 6 Slots / 9 Slots

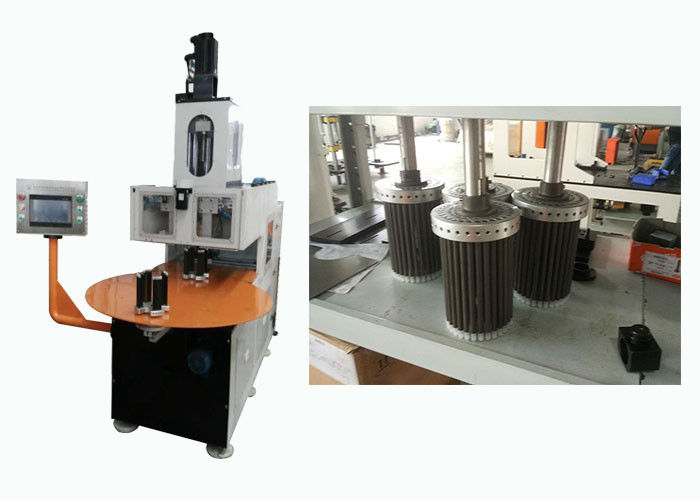

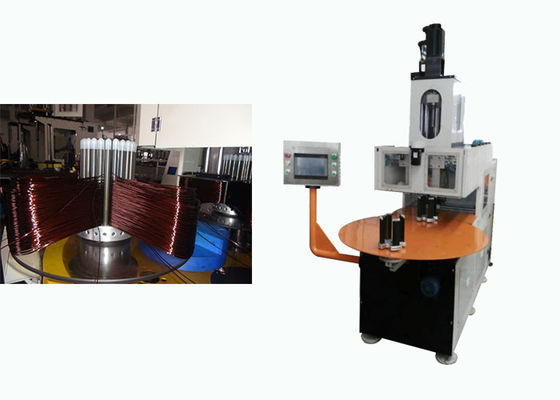

    This Stator Needle Winding Machine is suitable for BLDC motor stator or stepper motor stator with 6 slots, 9 slots and 12 slots stator. Machine can automatically do winding process, indexing process and wire cutting process. This machine is controlled by PLC. All the parameter could be set on the touch screen,
    The touch screen will display the winding data, alarm information and other data. The winding parameter can be set as per customer's requirement. This machine is easy to operate, only need to load and unload stator.



    (2) Application

    This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

    (3) Machine main function and characteristic


    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



    (4) OEM/ODM Profile


    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



    (5) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Double Head Automatic Stator Winding Machine  with 6 Slots / 9 Slots



    (6) About Our Factory

    Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
