Servo Stator Winding Machine / Motor Stator Coil Winder OEM / ODM

Servo Stator Winding Machine / Motor Stator Coil Winder OEM / ODM

    • Servo Stator Winding Machine / Motor Stator Coil Winder OEM / ODM
    • Servo Stator Winding Machine / Motor Stator Coil Winder OEM / ODM
  • Servo Stator Winding Machine / Motor Stator Coil Winder OEM / ODM

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001/SGS/CE
    Model Number: SMT-LR100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Wooden Case Suitable for Sea Transportation.
    Delivery Time: 30 - 43 days for 1set
    Payment Terms: T/T, L/C,
    Supply Ability: 2pcs/ 56 - 79 days
    Contact Now
    Detailed Product Description
    Name: Servo Motor Stator Coil Winder / Stator Winding Machine Transfer Number: 2-6pcs
    Power Supply: 380v/50/60Hz 7Kw Winding Head: 1-2 Pcs
    Max Stack Height: ≤70mm Mould Life: >1,000,000 Shots
    Automatic Grade: Full-Automatic Wire Diameter: Dia 0.1-1.0mm

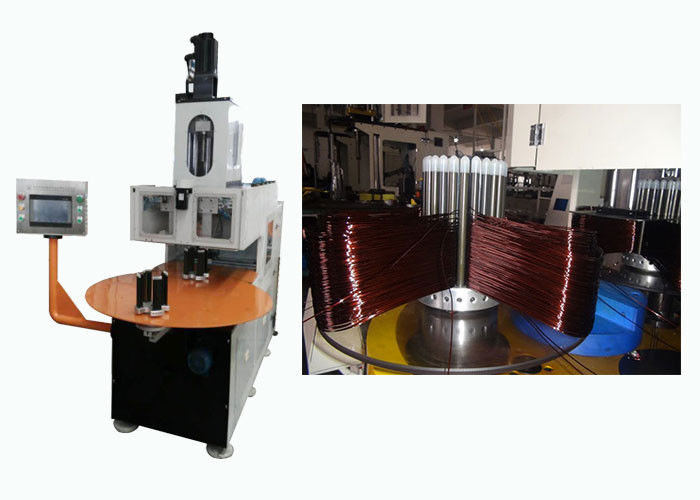

    Servo Stator Winding Machine / Motor Stator Coil Winder OEM / ODM





    1. It is automatic horizontal coil inserting machine and employs an AC servo motor driven system, an AC frequency conversion speed regulating system, a pneumatic and a PLC integrated control system.
    2. Besides, it is endowed with the functions of auto slot wedge feeding at a sixed length, cutting, forming and inserting into stator with coil and so on. The inserting speed of coil can be set piecewise.
    3. Equipped with man-machine interface, it is endowed with the functions of status display, failure warning and various parameter settings, ect, and the advantages of wide application range, high automation degree, easy operation and convenient mould replacement.
    4. Capable of automatically pulling the stator coil and paper into the stator slots for one time



    (1) Main Technical Data




    Model
    SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200 SLR70 QLR70
    Winding Head 1 1 1 1 2 4
    Wire Diameter(mm) 0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2 0.2~1.0 0.2~1.0
    Unload Speed ≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min 3000 3000
    Stack Height ≤80mm ≤120mm ≤150mm ≤230mm ≤70mm ≤70mm
    Winding Precision + 0 + 0 + 0 + 0 + 0 + 0
    Power Supply 380v/50/60HZ 8Kw 8Kw 9Kw 7Kw 7Kw
    Air Pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6pa ≥0.6pa
    Weight ≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg ≈1950Kg ≈2300Kg
    Dimension
    (L×W×Hcm)
    180×110×200 180×120×220 180×130×230 220×180×250 180×130×205 135×100×180



    (2) Application


    This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

    (3) Machine main function and characteristic

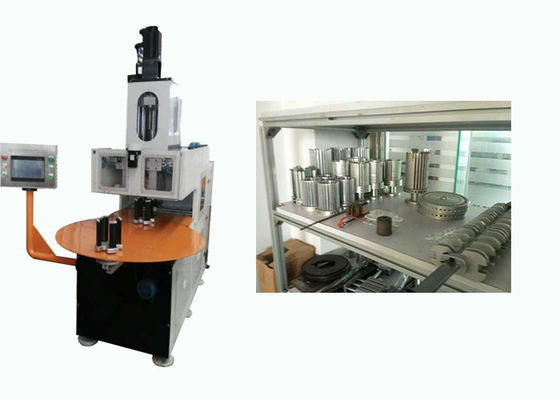

    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



    (4) OEM/ODM Profile


    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



    (5) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Servo Stator Winding Machine / Motor Stator Coil Winder OEM / ODM



    (6) About Our Factory

    Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
