Motor stator Inserting And Drifting Machine Max 120mm Core Length

Motor stator Inserting And Drifting Machine Max 120mm Core Length

    • Motor stator Inserting And Drifting Machine Max 120mm Core Length
    • Motor stator Inserting And Drifting Machine Max 120mm Core Length
  • Motor stator Inserting And Drifting Machine Max 120mm Core Length

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO/SGS Audit
    Model Number: SMT-I

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Plastic warpped ,vacuum Packed in plywood case
    Delivery Time: 41-65 days
    Payment Terms: L/C T/T
    Supply Ability: 1 PCS 41-65 days
    Contact Now
    Detailed Product Description
    Name: Motor Stator Automatic Coil Inserting / Drift Machine Stator I.D: Dia 20~100
    Stator .O.D: Max 160mm Core Length: Max 120mm
    Tooling Travel: Max 70mm Appropriate Wire: Copper Wire And Aluminum Wire
    Slot Number Range: 8~48 Slot Weight: About 850KG

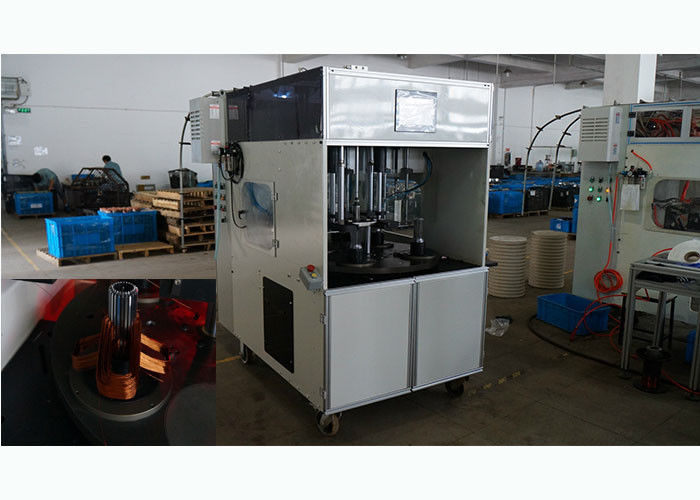

    Motor stator Inserting And Drifting Machine Max 120mm Core Length





    1. The CID-6 offers semi-automatic linear stator handling and simultaneous forming of both end turns.
    2. The SCI-16 uses our unique roll form wedgemaking system which reduces the working height and
    cost of these long toolings.
    3.The CIH-12 features automatic stack adjust and wedge notching. The forming bullet extends and retracts to reduce the handling time.and give flexibility for expanding inner shoe endturn forming. Optional O.D.end turn form and cuff supports are available for high slot fill stators.
    4. The BWS-10 is electrically and pneumatically controlled,with no hydraulics. This system features automatic winding and stator handling,downloaded specifications and simple quick lamination tooling changeovers.
    5. This CID-10 system is shown with the alliance H-Paper Automatic inject station, for placing the H papers between layers in a 3phase stator



    1. Our Service:



    Product Name Automatic Winding and Inserting Machine Application Electric motor stator production
    Status New Paint On request
    Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available



    2. Basic Parameters



    1. Basic machine complete with controls, less tooling.
    2. Heavy duty construction.
    3. All electric and pneumatic - no hydraulics.
    4. Machine enamel paint on request.
    5. Allen Bradley Programmable Controller.
    6. Compact design on wheels for ease of relocation and
    operator convenience.
    7. Maximum stack height up to 4 inches, 102mm, with rapid
    adjust feature.
    8. Four-station turntable.
    9. Smooth precise sinusoidal turntable index.
    10. Specification storage for use with the Windows compatible computer.



    3. SOFTWARE FEATURES:
    a) Specification storage of over 1,000 winding patterns.
    b) One (1) minute specification change.
    c) Upload/download to disk capability.
    d) Machine diagnostics utilizing visual basic software and full access to servo software.
    e) Machine functions independent of computer for reliability.
    f) Easy menu access to all machine winding parameters.
    g) Maintenance recording and access password protected.
    h) Pre-programmed maintenance schedules with operator prompting.




    Motor stator Inserting And Drifting Machine Max 120mm Core Length

    4. About Us

    Take full advantage of experienced engineers , skillful professional , perfect equipment , strict manufacturing process control and wide coverage service net-work , we are dedicated to provide our customers with the optimized solution to electric motor manufacturing , so far , except the big market share in China , we export our machines to the worldwide countries such as USA Italy , Australia , India , Brazil , Mexico ,Turkey , Tailand , Vietnam Iran etc,and our machines share the great the reputation among customers for its durable , reliable perormance , reasonable price and good after sales.
