ElectricInduction Motor Winding Machine inserting Drift Forming System

ElectricInduction Motor Winding Machine inserting Drift Forming System

    • ElectricInduction Motor Winding Machine inserting Drift Forming System
    • ElectricInduction Motor Winding Machine inserting Drift Forming System
  • ElectricInduction Motor Winding Machine inserting Drift Forming System

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO/SGS Audit
    Model Number: SMT-I

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Plastic warpped ,vacuum Packed in plywood case
    Payment Terms: L/C T/T
    Supply Ability: 1 PCS
    Contact Now
    Detailed Product Description
    Name: Electric Induction Motor Automatic Winding Inserting Drift Forming System Condition: New
    Stator I.D: Dia 20~100 Stator .O.D: Max 160mm
    Core Length: Max 120mm Tooling Travel: Max 70mm
    Appropriate Wire: Copper Wire And Aluminum Wire Slot Number Range: 8~48 Slot

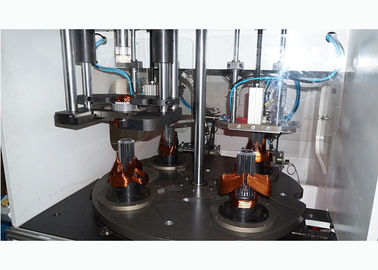

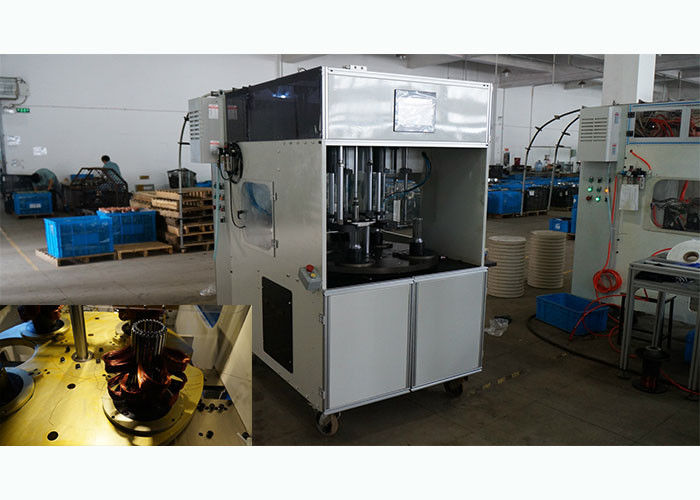

    ElectricInduction Motor Winding Machine inserting Drift Forming System





    1. Machines offter automatic linear stator handling and simultaneous forming of both and turns
    2. Quick, no hand tools, complete lamination tooling changeover .
    3. All electric and pneumatic operation with no hydralics ( optional)
    4. Automatic load / unload of stator ( optional )
    Stator handling arms with or without cuff supports .
    5. it is electircally and pneumatically controlled with no hydraulics . this system features automatic winding and stator handling , downloaded specification and simple quick lamination tooling changeover .





    1. Our Service:



    Product Name Automatic Winding and Inserting Machine Application Electric motor stator production
    Status New Paint On request
    Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available



    2. Basic Parameters



    1. Basic machine complete with controls, less tooling.
    2. Heavy duty construction.
    3. All electric and pneumatic - no hydraulics.
    4. Machine enamel paint on request.
    5. Allen Bradley Programmable Controller.
    6. Compact design on wheels for ease of relocation and
    operator convenience.
    7. Maximum stack height up to 4 inches, 102mm, with rapid
    adjust feature.
    8. Four-station turntable.
    9. Smooth precise sinusoidal turntable index.
    10. Specification storage for use with the Windows compatible computer.



    3. SOFTWARE FEATURES:
    a) Specification storage of over 1,000 winding patterns.
    b) One (1) minute specification change.
    c) Upload/download to disk capability.
    d) Machine diagnostics utilizing visual basic software and full access to servo software.
    e) Machine functions independent of computer for reliability.
    f) Easy menu access to all machine winding parameters.
    g) Maintenance recording and access password protected.
    h) Pre-programmed maintenance schedules with operator prompting.



    4. About Us

    Take full advantage of experienced engineers , skillful professional , perfect equipment , strict manufacturing process control and wide coverage service net-work , we are dedicated to provide our customers with the optimized solution to electric motor manufacturing , so far , except the big market share in China , we export our machines to the worldwide countries such as USA Italy , Australia , India , Brazil , Mexico ,Turkey , Tailand , Vietnam Iran etc,and our machines share the great the reputation among customers for its durable , reliable perormance , reasonable price and good after sales.
