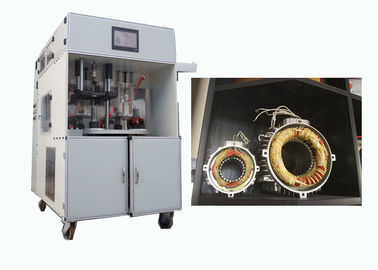

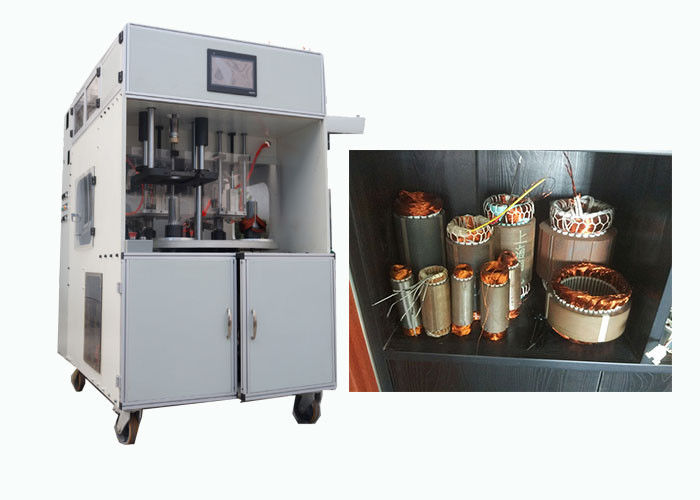

    Name: Automatic Winding Embedding Machine / Inserting And Drifting Machine Stator I.D: Dia 20~100
    Stator .O.D: Max 160mm Tooling Travel: Max 70mm
    Appropriate Wire: Copper Wire And Aluminum Wire Slot Number Range: 8~48 Slot
    Power Supply: 380V/50/60HZ 3KW Condition: New

    Inserting And Drifting Machine / Automatic Winding Embedding Machine




    Automatic winding embedding system using standard modular design, including the winding module, wedge shaped and delivery module, embedded module line, and position rotary module. The machine of the automatic winding machine and inserting machine use rotary table connected together to achieve automatic winding embedded line high degree of automation, maximize savings in manpower. Users can configure one, two or three winding module according to product selection, to achieve the best value for money. The machine uses 3-dimensional software modular design, so the module can be independently to facilitate the demolition, and GM and other machines. Simple operation, workers can easily operate multiple machines.



    1. Our Service:



    Product Name Automatic Winding and Inserting Machine Application Electric motor stator production
    Status New Paint On request
    Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available



    2.Basic Parameters



    1.Basic machine complete with controls, less tooling.
    2.Heavy duty construction.
    3.All electric and pneumatic - no hydraulics.
    4.Machine enamel paint on request.
    5.Allen Bradley Programmable Controller.
    6.Compact design on wheels for ease of relocation and
    operator convenience.
    7.Maximum stack height up to 4 inches, 102mm, with rapid
    adjust feature.
    8.Four-station turntable.
    9.Smooth precise sinusoidal turntable index.
    10.Specification storage for use with the Windows compatible computer.



    3.SOFTWARE FEATURES:
    a) Specification storage of over 1,000 winding patterns.
    b) One (1) minute specification change.
    c) Upload/download to disk capability.
    d) Machine diagnostics utilizing visual basic software and full access to servo software.
    e) Machine functions independent of computer for reliability.
    f) Easy menu access to all machine winding parameters.
    g) Maintenance recording and access password protected.
    h) Pre-programmed maintenance schedules with operator prompting.


    11. Maximum flyer speed up to 3,500 RPM, fully closed loop and tied to coilform jump for crossover and turn count control.
    12. Capable of variable speed, either step to step or slow to jump for ± 0 turn count.
    13. Capable of pulling up to two (2) #19 AWG, 0.95mm, wires in parallel (may be different sizes.)
    14. Variable wire tension control.
    15. Includes wire feeds from machine to wire spools. Customer to specify either ceramic eyelets or spring lined plastic tubing.
    16. Fully electronically adjustable turn count, coilform jump, upper tooling index, and lead length control from the computer specification routine.



    4. About Us

    Take full advantage of experienced engineers , skillful professional , perfect equipment , strict manufacturing process control and wide coverage service net-work , we are dedicated to provide our customers with the optimized solution to electric motor manufacturing , so far , except the big market share in China , we export our machines to the worldwide countries such as USA Italy , Australia , India , Brazil , Mexico ,Turkey , Tailand , Vietnam Iran etc,and our machines share the great the reputation among customers for its durable , reliable perormance , reasonable price and good after sales.
