Offline Inserting And Drifting Machine 380V 50HZ / 60HZ 3KW

Offline Inserting And Drifting Machine 380V 50HZ / 60HZ 3KW

  • High Light

    automatic motor winding machine

    ,

    induction motor winding machine

  • Name

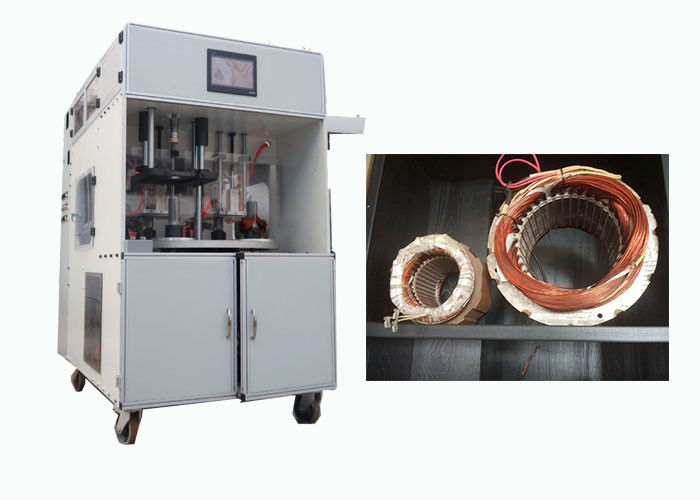

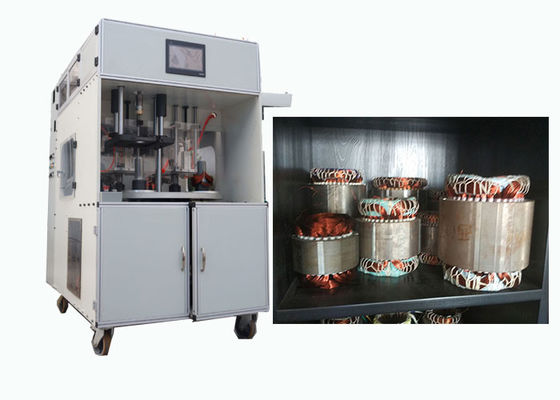

    Automatic Winding Embedding Machine / Inserting And Drifting Machine
  • Stator I.D
    Dia 21~100
  • Stator .O.D
    Max 160mm
  • Tooling Travel
    Max 70mm
  • Appropriate Wire
    Copper Wire And Aluminum Wire
  • Slot Number Range
    8~48 Slot
  • Power Supply
    380V/50/60HZ 3KW
  • Weight
    990kg
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Audit
  • Model Number
    SMT-I
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plastic warpped ,vacuum Packed in plywood case
  • Delivery Time
    38-61 days
  • Payment Terms
    L/C T/T
  • Supply Ability
    1 PCS 38-61 days

Offline Inserting And Drifting Machine 380V 50HZ / 60HZ 3KW

Offline Inserting And Drifting Machine 380V 50HZ / 60HZ 3KW




Automatic winding embedding system using standard modular design, including the winding module, wedge shaped and delivery module, embedded module line, and position rotary module. The machine of the automatic winding machine and inserting machine use rotary table connected together to achieve automatic winding embedded line high degree of automation, maximize savings in manpower. Users can configure one, two or three winding module according to product selection, to achieve the best value for money.



1. Our Service:



Product Name Automatic Winding and Inserting Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available



2. Basic Parameters



1. Basic machine complete with controls, less tooling.
2. Heavy duty construction.
3. All electric and pneumatic - no hydraulics.
4. Machine enamel paint on request.
5. Allen Bradley Programmable Controller.
6. Compact design on wheels for ease of relocation and
operator convenience.
7. Maximum stack height up to 4 inches, 102mm, with rapid
adjust feature.
8. Four-station turntable.
9. Smooth precise sinusoidal turntable index.
10. Specification storage for use with the Windows compatible computer.



3.SOFTWARE FEATURES:


a) Specification storage of over 1,000 winding patterns.
b) One (1) minute specification change.
c) Upload/download to disk capability.
d) Machine diagnostics utilizing visual basic software and full access to servo software.
e) Machine functions independent of computer for reliability.
f) Easy menu access to all machine winding parameters.
g) Maintenance recording and access password protected.
h) Pre-programmed maintenance schedules with operator prompting.


11. Maximum flyer speed up to 3,500 RPM, fully closed loop and tied to coilform jump for crossover and turn count control.
12. Capable of variable speed, either step to step or slow to jump for ± 0 turn count.
13. Capable of pulling up to two (2) #19 AWG, 0.95mm, wires in parallel (may be different sizes.)
14. Variable wire tension control.
15. Includes wire feeds from machine to wire spools. Customer to specify either ceramic eyelets or spring lined plastic tubing.
16. Fully electronically adjustable turn count, coilform jump, upper tooling index, and lead length control from the computer specification routine.



4. About Us

Take full advantage of experienced engineers , skillful professional , perfect equipment , strict manufacturing process control and wide coverage service net-work , we are dedicated to provide our customers with the optimized solution to electric motor manufacturing , so far , except the big market share in China , we export our machines to the worldwide countries such as USA Italy , Australia , India , Brazil , Mexico ,Turkey , Tailand , Vietnam Iran etc,and our machines share the great the reputation among customers for its durable , reliable perormance , reasonable price and good after sales.
