    Detailed Product Description
    Name: Electric Generator Coil Winder / Automatic Three Phase Stator Winding Machine Transfer Number: 2-6pcs
    Power Supply: 220v/50/60Hz 3Kw Dimension: 2300x 2200 X 2000mm
    Winding Head: 8pcs Air Pressure: 0.4-0.6MPa
    Color: Yellow/White Ustrial Motor Coils Warranty: 1 Year

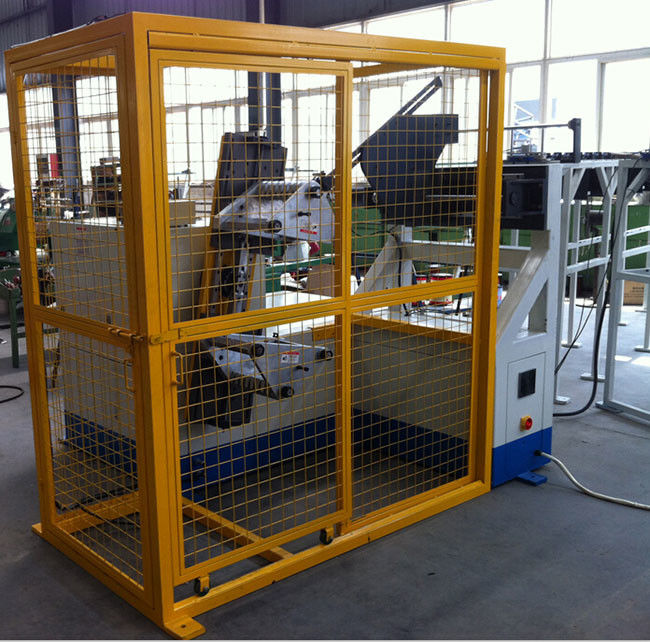

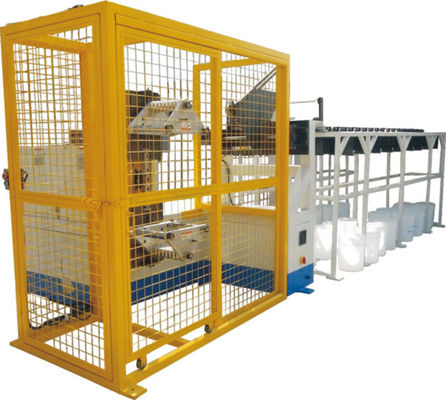

    Fan Motor Stator Electric Motor Winding Machine Semi - Automatic





    Main Features:

    1. suitable for inserting coil and wedge into stator slot by servo system;
    2. can insert the coil and wedge or coil and wedge in the mid of slot into stator at a time;

    3. wedge feeding is to be done by stepping motor, and coil and wedge inserting is by servo system;
    4. different parameter could be set in human-machine interface;
    5. the speed and feeding mode is acquirable according to different slot filling rates and different kinds of wire.



    (1) Main Technical Date



    Item Data
    Model DR1200
    Swing Diameter ≤900mm
    Wire diameter 0.4 - 1.5mm
    Paralle Wire No. ≤ 40pieces
    Air Pressure 0.4 -0- 0.6 MPa
    Power supply 220V/ 50/60Hz, 3kw
    Machine weight About 1100kg
    Machine dimension (LxWxH) 2300x 2200 x 2000mm



    (2) Application:
    This machine is suitable for 2 poles, 4 poles coils winding.

    (3) Machine main function and characteristic


    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



    (4) OEM/ODM Profile


    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



    (5) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
