Fully Automatic Coil Winding Machine Alternator Stator Winding Machine With Eight Working Station

Fully Automatic Coil Winding Machine Alternator Stator Winding Machine With Eight Working Station

Fully Automatic Coil Winding Machine Alternator Stator Winding Machine With Eight Working Station

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO9001/SGS/CE
Model Number: SMT-QLR70

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case Suitable for Sea Transportation.
Delivery Time: 30 - 43 days for 1set
Payment Terms: T/T, L/C,
Supply Ability: 2pcs/ 56 - 79 days
Contact Now
Detailed Product Description
Name: Coil Winding Machine For Car Generator Transfer Number: 2-6pcs
Power Supply: 380v/50/60Hz 7Kw Winding Head: 1-2 Pcs
Max Stack Height: ≤70mm Mould Life: >1,000,000 Shots
Automatic Grade: Full-Automatic Wire Diameter: Dia 0.1-1.0mm

Eight Working Station Automatic Motor Stator Coil Winding Machine





Application: it is suitable for 2 poles. 4 poles, 6 poles stator and also for middle or big size stator.



Information needed for Automatic Stator Coil Winding Machine inquiry


It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3.Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.



3. Operator step



1.Power on the machine

2.Thread wire this this motor

3. Set the winding parameter in the touch screen

4. Press the "start" button

5. Machine will do winding process automatically

6.After finishing the winding, machine will stop

7.Take out the wire from the tooling.



4. Information needed for Automatic Stator Coil Winding Machine inquiry


It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.

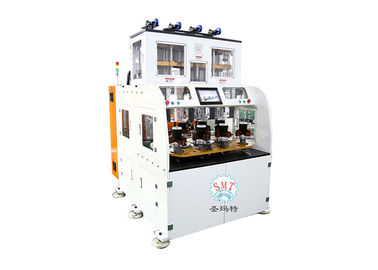

This machine has 8 winding station, all the four heads will do winding together. Stator coil winding machine

Fully Automatic Coil Winding Machine Alternator Stator Winding Machine With Eight Working Station

5. Main Technical Data




Model
SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200 LR100 LR200
Winding Head 1 1 1 1 2 2
Wire Diameter(mm) 0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2 0.2~1.0 0.2~1.0
Unload Speed ≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min 3000 3000
Stack Height ≤80mm ≤120mm ≤150mm ≤230mm ≤70mm ≤70mm
Winding Precision + 0 + 0 + 0 + 0 + 0 + 0
Power Supply 380v/50/60HZ 8Kw 8Kw 9Kw 7Kw 7Kw
Air Pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6pa ≥0.6pa
Weight ≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg ≈1950Kg ≈2300Kg
Dimension
(L×W×Hcm)
180×110×200 180×120×220 180×130×230 220×180×250 180×130×205 135×100×180



6. Machine main function and characteristic




Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



7. OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



 8. Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



9.  About Our Factory

Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
