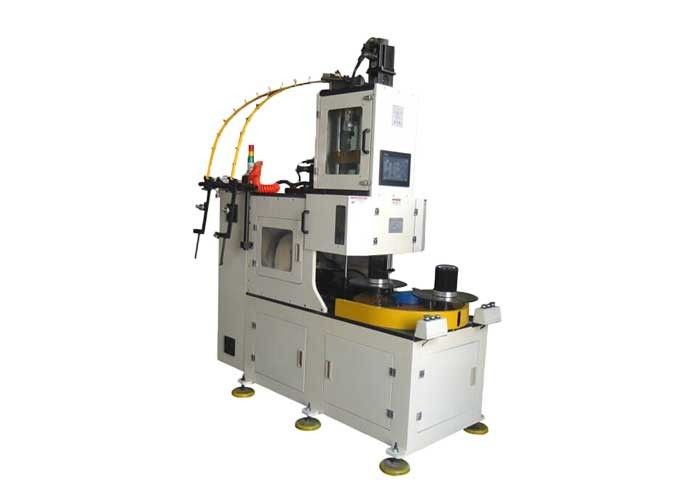

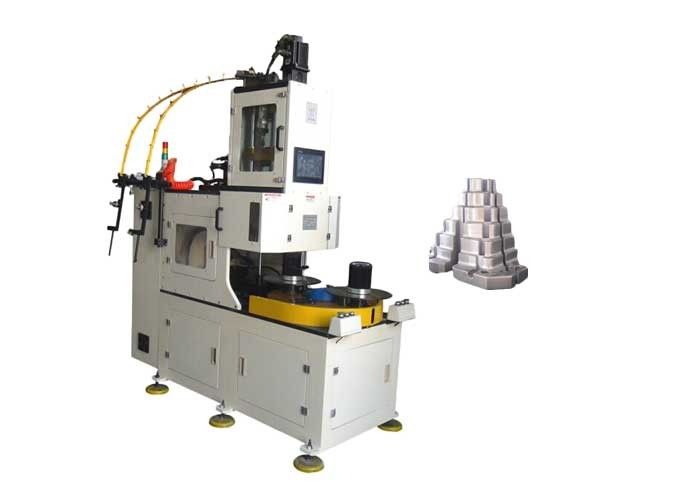

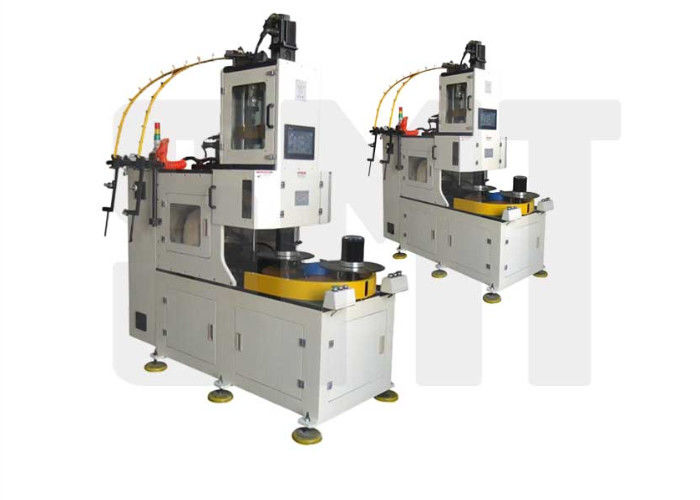

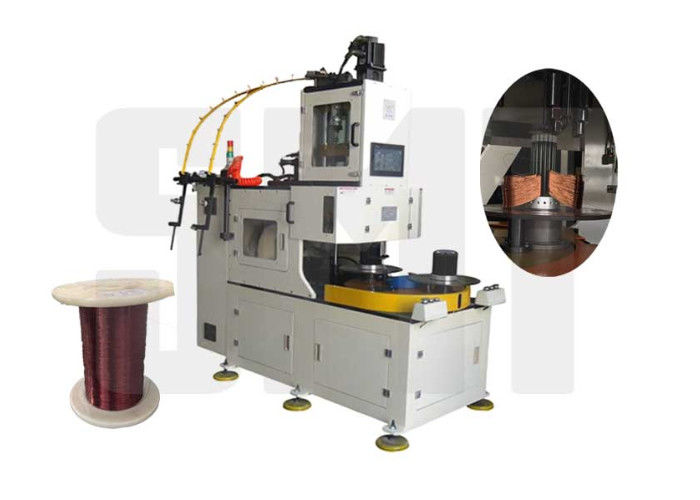

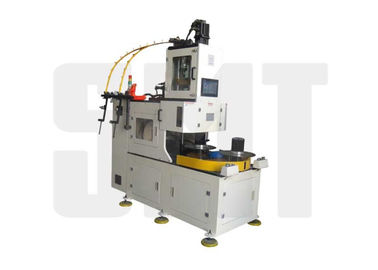

    Name: Vertical White Automatic Winding Machine For Pump Motor / Induction Motor Stator Production Model: LR150-I
    Winding Head: Single Winding Speed: Less Than 2500 RPM
    Stack Height: Largest: 120mm Air Pressure: At Least 0.6MPa
    High Light:

    electric motor coil winding machine

    ,

    ceiling fan winding machine

    Vertical White Automatic Winding Machine for Pump Motor / Induction Motor Stator Production

    SMT-LR150-I





    With single winding head and double stations, the machine can wind coils automatically directly and orderly into transfer cup. The motion is controlled by six servo motors so the precision is high. It is especially suitable for the coil inserting of stator with high slot fill factor and small slot opening width.



    (1) Technical Parameters



    Model SMT-LR150-I
    Winding head 1 pc
    Wire diameter D0.3-D1.0mm
    Winding speed ≤2500r/min
    Stack height ≤120mm
    Winding precision ±0 turn
    Power supply 380V/50/60Hz 8Kw
    Air pressre ≥0.6MPa
    Weight ≈1600Kg
    Dimension (L)1800×(W)1200×(H)2200mm



























    (2) Brief Instruction of Machine



    Machine "Vertical White Automatic Winding Machine for Pump Motor / Induction Motor Stator Production" is used for winding electric wires to several coils automatically and into transfer cup orderly.

    It adopts six servo motors to control the motion, like hooking & cutting wire, turntable rotation and transfer cup indexing, etc. So it also has higher qualification rate.

    Operators need to stand when working.



    (3) Main Specifications



    1. A kind of single-head and double-station automatic winding machine;

    2. It can wind one phase coils at a time, which can wind single and multiple wires;

    3. Automatic put the coil into transfer former orderly;

    4. Six spindles are controlled by servo motors: the main spindle, high-speed mold dipping, hooking and cutting wire, turntable rotation and transfer cup index are all controlled by servo motors;

    5. Especially suitable for stators with high slot fill factor and small slot opening;

    6. Winding mode such as automatic skip, automatic cutting and automatic indexing can be set in human-machine interface, winding tension is adjustable;

    7. Obtain continuous or discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding;

    8. It saves labor and has high efficiency.



    (4) Services



    The company mainly produces machinery and equipment for motor production. Our products are mainly automatic winding machine, slot insulation machine, coil head lacing machine, coil inserting machine, forming machine and insulaiton forming machine, etc.

    Products and manufacturing are as customer's request. During warranty period, within 1 year after delivery, our engineers will provide technical support for free. Besides, overseas after-service is available.

    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



    (5) Production Line Profile



    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
