One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically

One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically

    • One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically
    • One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically
    • One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically
    • One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically
  • One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS / BV
    Model Number: LR200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later.
    Packaging Details: Plastic wrapping film, vacuum package, plywood cases totally. The package size is accoding to actual machine size.
    Delivery Time: 50-55 days after advance payment
    Payment Terms: T/T, L/C
    Supply Ability: 10 Set/Sets per 45 days
    Contact Now
    Detailed Product Description
    Name: One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically Model: SMT-LR200
    Winding Head: One Wire Dia. Range: Φ0.3mm ~ Φ1.2mm
    Machine Voltage: 380V, 50/60Hz Color: White

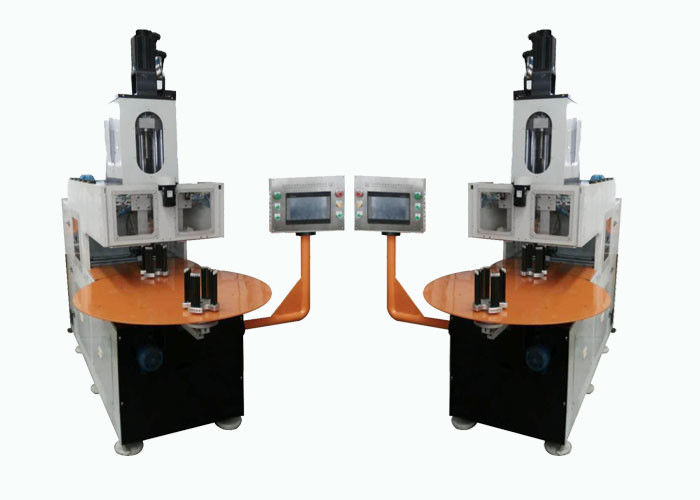

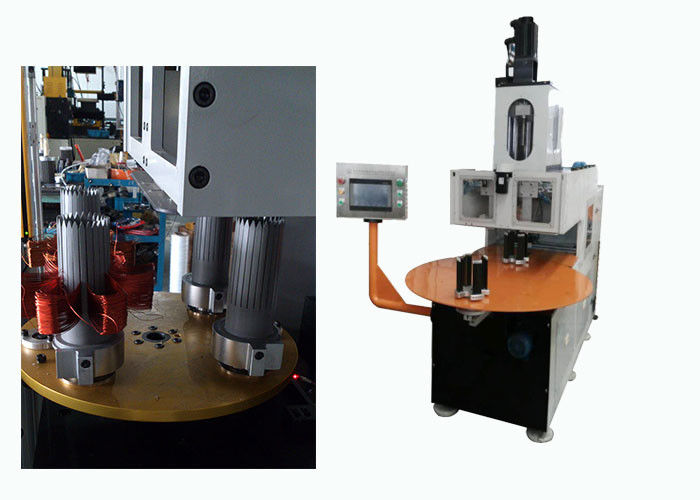

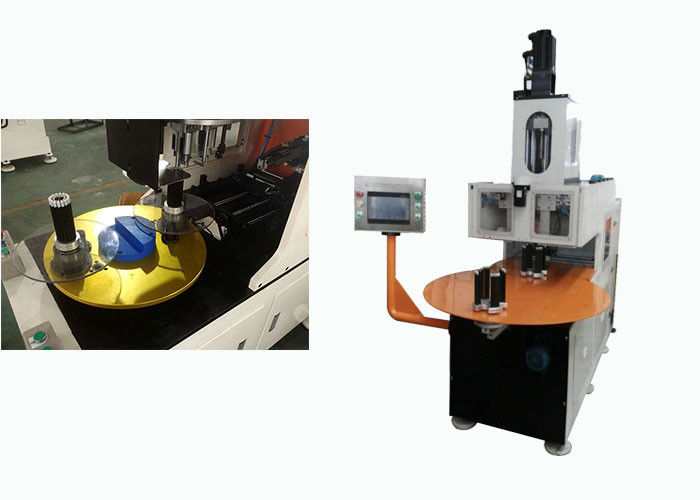

    One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically SMT-LR200





    Equipped with one winding head and two working stations with turntable. It can wind coils directly and orderly into transfer cup, which is controlled by six servo motors. If stator coils are made by this kind of machine, It will be eaiser to insert the coils of stators with high slot fill factor and small slot opening width. So it can save labor effecitvely. Compared with other kinds of vertical winding machine, it's more suitable for bigger size motor coils.



    (1) Technical Parameters



    Model SMT-LR200
    Winding head 1pc
    Wire diameter Φ0.3mm~Φ1.2mm
    Winding Speed ≤2000r/min
    Max stack height ≤230mm
    Winding precision ±0 turn
    Power supply 380V/50/60Hz 9Kw
    Air pressure ≥0.6MPa
    Weight ≈2200Kg
    Dimension (L)2200×(W)1800×(H)2500mm



    (2) Brief Instruction of Machine



    Machine "One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically" is used for winding electric wires to several coils automatically and putting coils into transfer cup orderly.

    It adopts six servo motors to control the motion, like main spindle, turntable rotating and transfer cup indexing, etc. It can achieve higher qualification rate.

    Operators need to stand when operating.



    (3) Main Specifications



    1. A kind of single-head and double-station automatic winding machine;

    2. It can wind one phase coils at a time, which can wind single and multiple wires;

    3. Automatic put the coil into transfer former orderly;

    4. Six spindles are controlled by servo motors: the main spindle, high-speed mold dipping, hooking and cutting wire, turntable rotation and transfer cup index are all controlled by servo motors;

    5. Especially suitable for stators with high slot fill factor and small slot opening;

    6. Winding mode such as automatic skip, automatic cutting and automatic indexing can be set in human-machine interface, winding tension is adjustable;

    7. Obtain continuous or discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding;

    8. It saves labor and has high efficiency.



    (4) Services



    We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.

    Design & manufacturing are as customer's request. For example, shape design, components brand and machine color,etc. can be specilized if customer has special request. Moreover, we can help to arrange the layout of machines of customer site when necessary.

    Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



    (5) Production Line Service



    With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.

    So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.

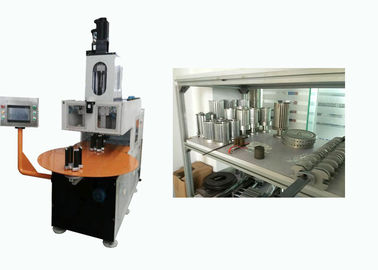

    One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically



    (6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a manufacturer in Suzhou city, China, which is specialized in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.

    One Winding Head Turntable Stator Winding Machine Coiling Wires Automatically
