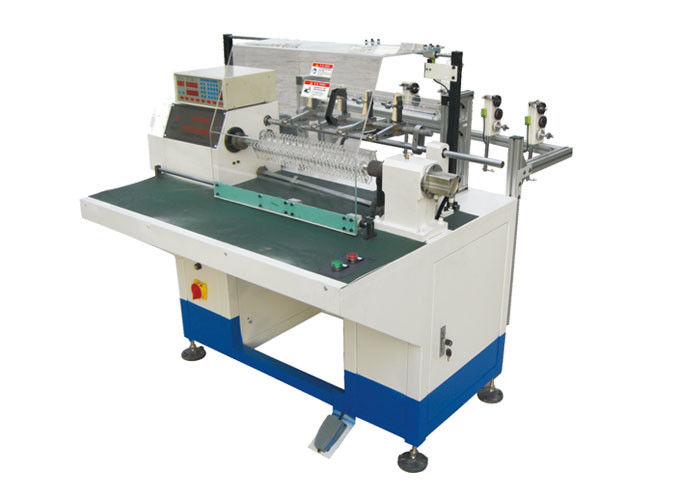

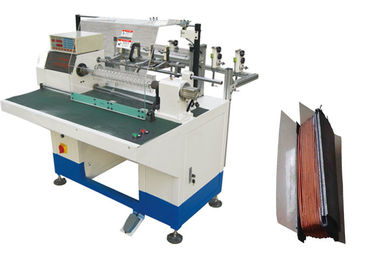

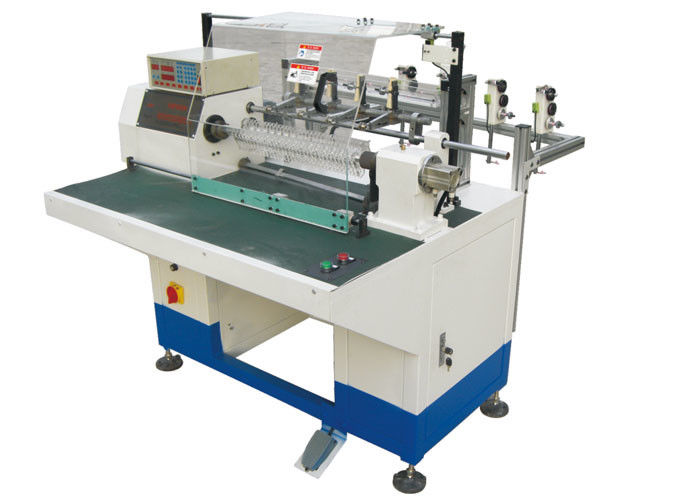

    Name: 1-8 Winding Heads Automatic Copper Wire Coiling Machine For AC/DC Motor Making Model: R160
    Winding Head: Max: 8 Pcs Wire Dia. Min: Φ0.1mm
    Wire Dia. Max: Φ1.0mm Tooling Type: Organic Glass Or Wood

    1-8 Winding Heads Automatic Copper Wire Coiling Machine for AC/DC Motor Making SMT-R160

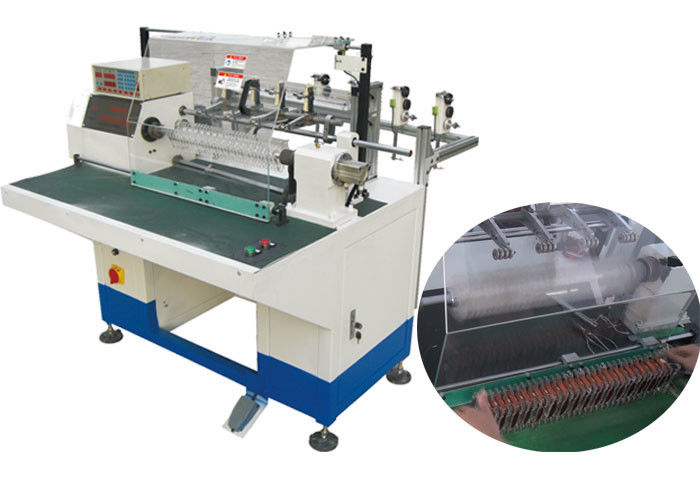

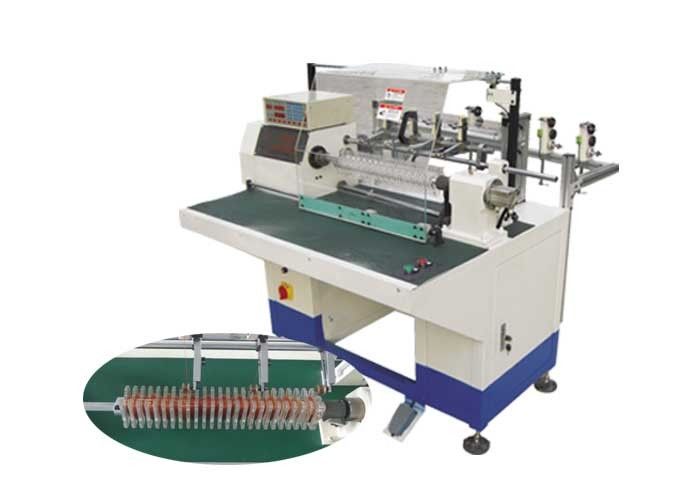

    Winding head can be equipped up to 8pcs, which can wind 8 group coils at one time automatically. Comapred with other winding machines, this kind of machine is simpler and cheaper which is convenient for maintenance. It is especially suitable for winding coils of micro and special electric motor.



    (1) Technical Parameters



    Model SMT-R160
    Wire diameter Φ0.1mm~Φ1.0mm
    Winding form diameter ≤Φ220mm
    Winding head 1-8
    Transfer distance ≤170mm
    Max. rotation speed 3200r/min
    Air pressure ≥0.4MPa
    Power supply 220V/50/60Hz 0.75Kw
    Weight ≈550Kg
    Dimension (L)1550×(W)1250×(H)1300mm



    (2) Brief Instruction of Machine



    Machine "1-8 Winding Heads Automatic Copper Wire Coiling Machine for AC/DC Motor Making" is used for winding electric wires to several coils in the winding form automatically and orderly.

    Operators need to unload the coils by manual. It is especially suitable for winding coils of micro and special electric motor.



    (3) Main Specifications



    1. It’s suitable for multi-connected and multi-layer winding;

    2. Wind 1-8 coils simultaneously at a time;

    3. Automatic slot change, starting winding position, idling start, idling stop, double-ended stop, automatic reset and automatic start could be set in the specialized controller;

    4. There are two alternate spindles to facilitate higher output;

    5. It can be applied to all kinds of micro motors such as fan motor, pump motor, air conditioner motor, three-phase motor, etc.



    (4) Services



    We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.

    Design & manufacturing are as customer's request. For example, shape design, components brand and machine color,etc. can be specilized if customer has special request. Moreover, we can help to arrange the layout of machines of customer site when necessary.

    Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



    (5) Production Line Service



    With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.

    So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
