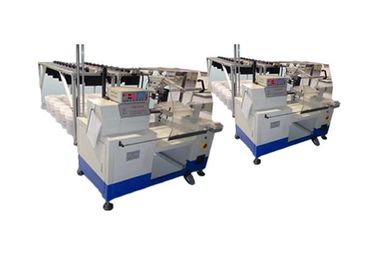

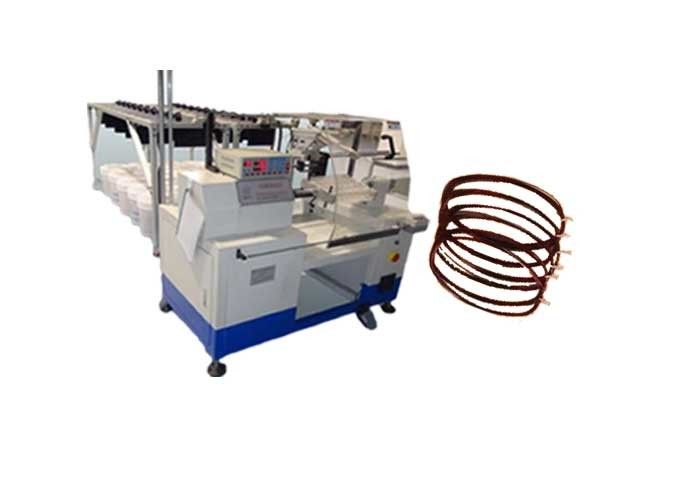

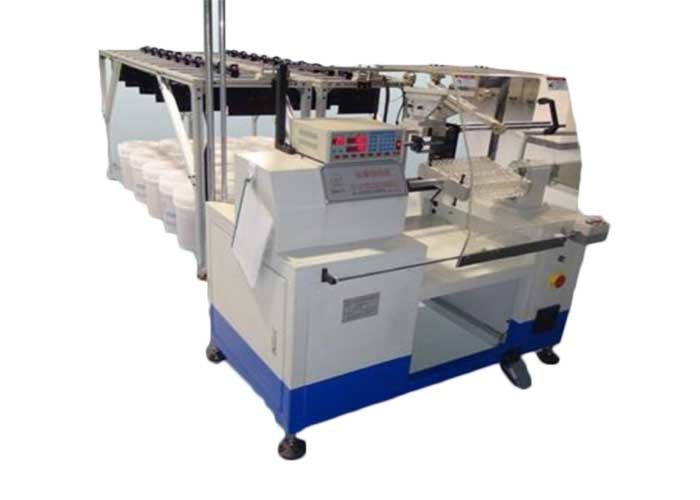

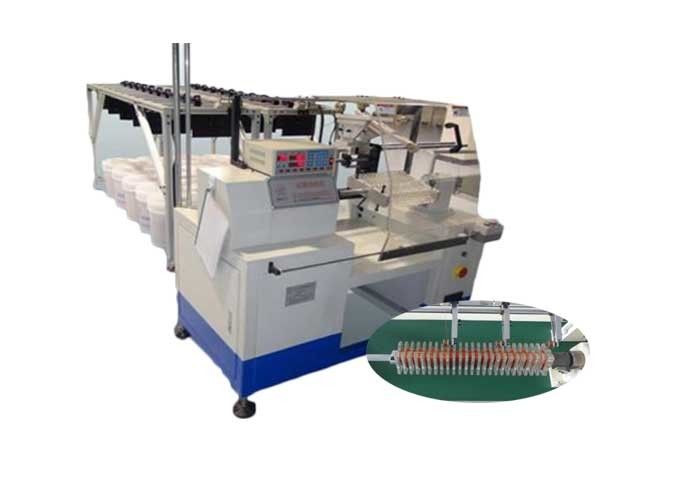

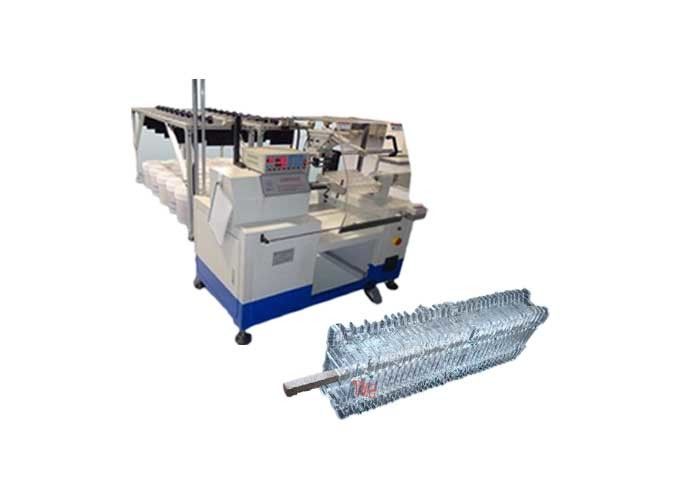

Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically

Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically

    • Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically
    • Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically
    • Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically
    • Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically
    • Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically
  • Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / BV / SGS
    Model Number: R550

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Price unit: USD; Price is negotiable according to different stator production request.
    Packaging Details: Plywood cases, vacuum package and wrapping film.
    Delivery Time: 56-62 days after placing the order
    Payment Terms: T/T, L/C
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Name: Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically Model: SMT-R550
    Winding Head: At Most 3 Pcs Wire Dia. Min: Φ0.2mm
    Winding Speed: ≤1200r/min G.W: ≈700Kg

    Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically SMT-R550





    Equipped with up to 3pcs winding head, which can wind 3 group coils at one time automatically and orderly. Comapred with other auto winding machines, this kind of machine is simpler and cheaper which is convenient for maintenance. Operator need to unload coils manually. It's suitable for bigger size motor stators.



    (1) Technical Parameters



    Model SMT-R550
    Wire diameter Φ0.2~Φ1.5mm
    Winding form diameter ≤550mm
    Parallel wire no. ≤16pcs
    Winding head 1~3pcs
    Transfer distance ≤400mm
    Unload winding speed ≤1200r/min
    Power supply 220V/50/60Hz 1.5Kw
    Air pressure ≥0.4MPa
    Weight ≈700Kg
    Dimension (L)1550×(W)1250×(H)1550mm



    (2) Brief Instruction of Machine



    Machine "Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically" is mainly used for winding electric wires to the winding tools automatically and orderly to make stator coils.

    Operators need to unload the coils by manual while it's easy to repair with low cost if happens with faults.



    (3) Main Specifications



    1. This machine is specially designed for multiple wire even with more parallel coils winding, such as alternator motor, servo motor and three phase motor.

    2. The machine adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting, slowing ending, sides stop, auto width, auto reset, etc.

    3. The machine can be equipped with automatic through-sleeve device.



    (4) Services



    We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.

    Design & manufacturing are according to standard idea and customer's request. For example, mahcine out-look, color, components brand and so on, all can be specilized if customer has special request. Besides, we can help to design the layout of machines of customer site when necessary.

    Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer meet problems and need our technicans be their site, our after-sales engineers will be at customer's site sonnest.

    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



    (5) Production Line Service



    With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.

    So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.

    Middle-size Motor Stator Winding Machine Rolling Cooper Wires Automatically



    (6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a manufacturer in Suzhou city, China, which is specialized in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.
