Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically

Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically

    • Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically
    • Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically
    • Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically
    • Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically
  • Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / BV / SGS
    Model Number: SLR70

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Price unit: USD; Price: negotiable according to customer's request and design
    Packaging Details: Machine "Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically" is packaged with plywood cases. Its dimension is decided according to machine and some parts need to be packaged together.
    Delivery Time: 55-60 days after receiving the advance payment
    Payment Terms: T/T, L/C
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Machine: Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically Model: SMT-SLR70
    Winding Head: Double Heads For Winding Wire Dia.: Φ0.2mm ~ Φ1.0mm
    Applicative Wire: Copper Wires / Aluminum Wires Net Weight: ≈1950Kg

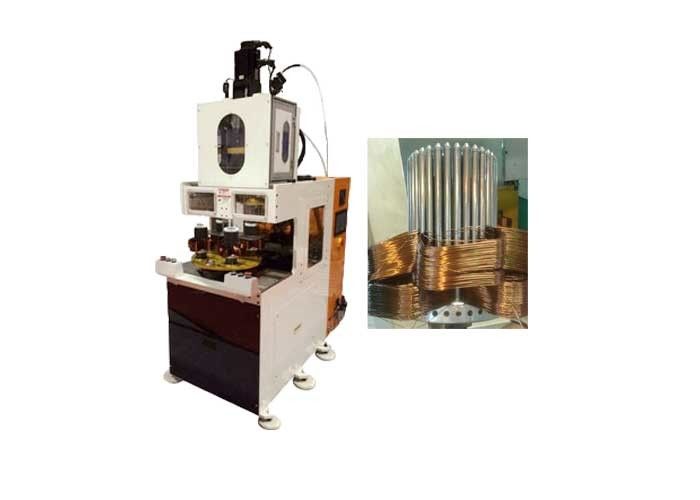

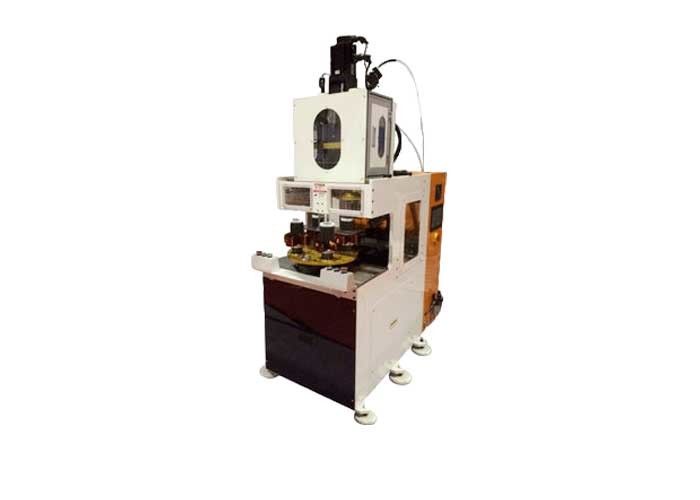

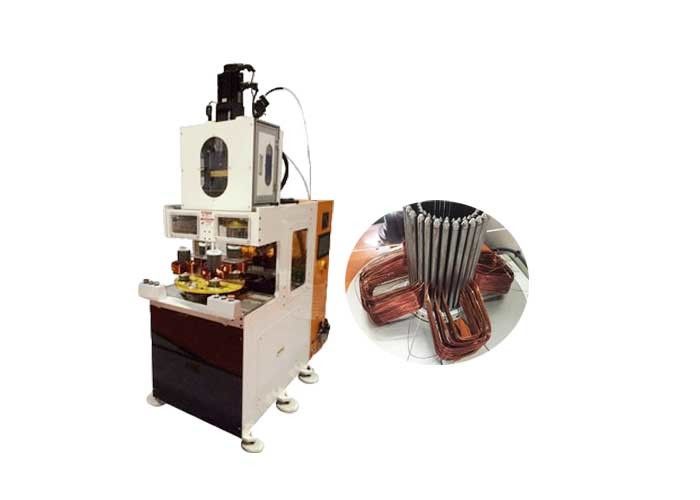

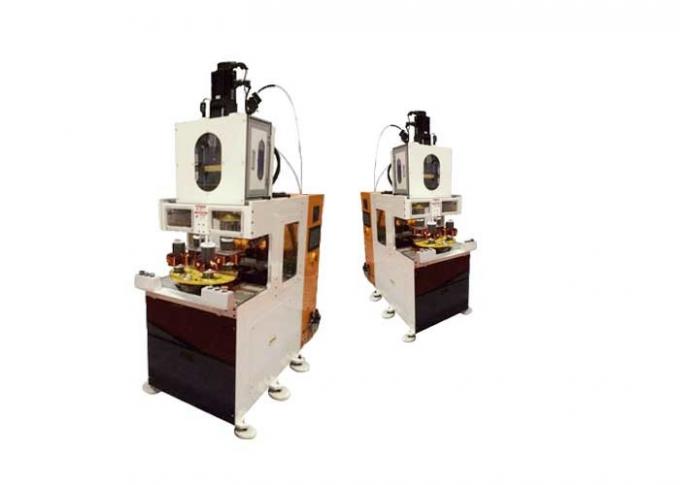

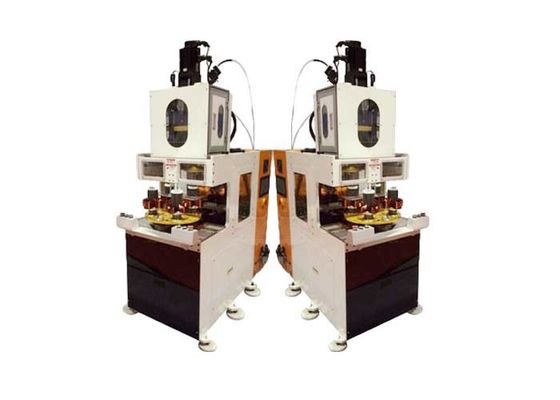

    Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically SMT-SLR70

    Equipped with double winding heads and four working stations with turntable. It can wind coils directly and orderly into transfer cups. And the motions are driven by six servo motors. It's eaiser for operators to insert the coils of stators with high slot fill factor and small slot opening width. So it can save labor effecitvely.

    (1) Technical Parameters

    Model SMT-SLR70
    Winding head 2pc
    Wire diameter Φ0.2mm ~ Φ1.0mm
    Winding Speed ≤3000r/min
    Max stack height ≤70mm
    Winding precision ±0 turn
    Power supply 380V/50/60Hz 7Kw
    Air pressure ≥0.6MPa
    Weight ≈1950Kg
    Dimension (L)1800×(W)1300×(H)2050mm


    (2) Brief Instruction of Machine

    Machine "Double-head Electric Motor Winding Machine Coiling Copper Wires Automatically" is used for winding copper / aluminum wires to several coils automatically and putting them into transfer cup orderly.
    It adopts six servo motors to control the motion, like high-speed mold dipping, turntable rotating and transfer cup indexing and so on. It can achieve higher qualification rate.
    Operators need to stand when operating.

    (3) Main Specifications

    1. A kind of double-head and four-station automatic winding machine;
    2. It can wind two phases at one time, which can wind single or multiple wires.
    3. Automatic put the coil into transfer former orderly;
    4. Six spindles are controlled by servo motors: the main spindle, high-speed mold dipping, hooking and cutting wire, turntable rotation and transfer cup index are all controlled by servo motors;
    5. Especially suitable for stators with high slot fill factor and small slot opening;
    6. Winding mode such as automatic skip, automatic cutting and automatic indexing can be finished successively at one time;
    7. Parameters can be set in human-machine interface, winding tension is adjustable;
    8. Obtain continuous or discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding;
    9. It saves labor and has high efficiency.

    (4) Services

    We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.
    Design & manufacturing are as customer's request. For example, shape design, components brand and machine color,etc. can be specilized if customer has special request. Moreover, we can help to arrange the layout of machines of customer site when necessary.
    Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.

    (5) Production Line Service

    With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.
    So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
