    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / BV / SGS
    Model Number: QLR70

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Price unit: USD; Price is negotiable according to different stator production request.
    Packaging Details: Plywood cases, vacuum package and wrapping film. The dimension is according to actual machine size.
    Delivery Time: 45-60 days after placing the order with advance payment
    Payment Terms: T/T, L/C
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Machine: 4 Winding Heads Stator Winding Equipment For 3 Phase Motor Production Model: SMT-QLR70
    Winding Head: 4 Winding Heads Wire Dia. Max: Φ1.0mm
    Air Pressure: At Least 0.6MPa NW: About 2300Kg

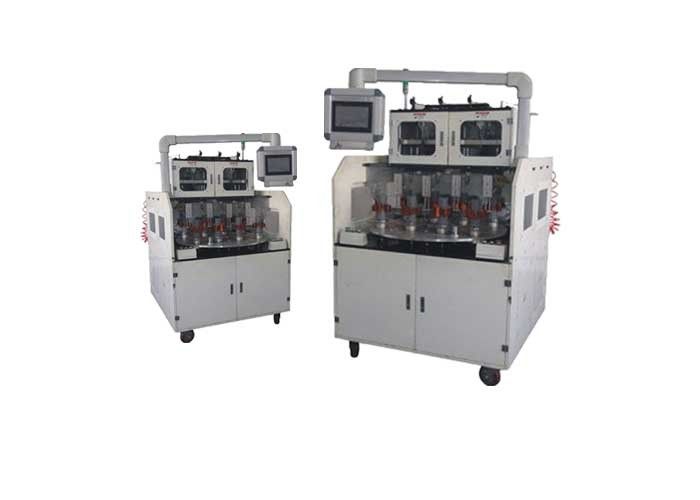

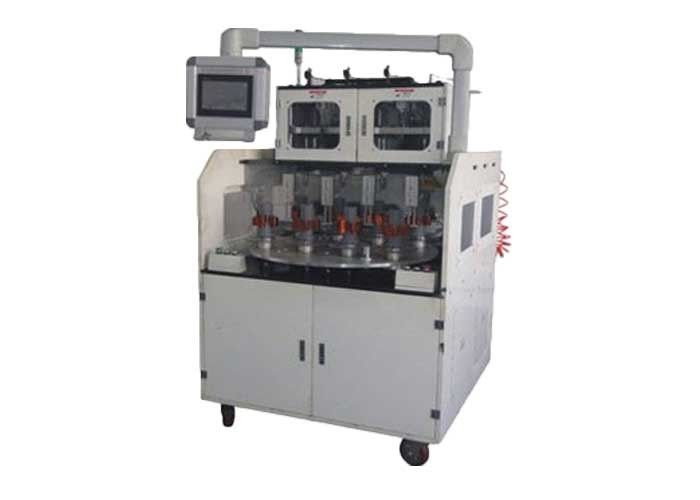

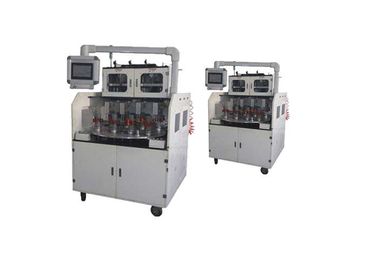

    4 Winding Heads Stator Winding Equipment for 3 Phase Motor Production SMT-QLR70

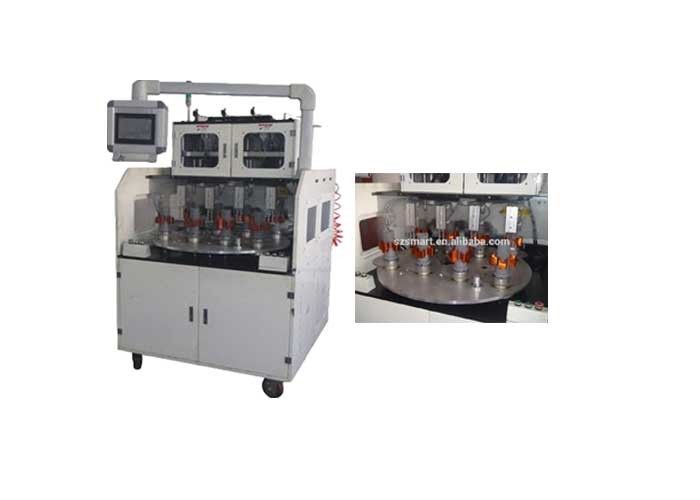

    The special structure is with four winding heads and eight working stations with turntable. It can wind coils directly and orderly into transfer cups at one time. Precision motion is driven by servo motors. If using vertical coil winding machines to wind coils, it's more convenient for inserting the coils of stators with high slot fill factor and small slot opening width.

    (1) Technical Parameters



    Model SMT-QLR70
    Winding head 4pc
    Wire diameter Φ0.2mm~Φ1.0mm
    Winding Speed ≤3000r/min
    Max stack height ≤70mm
    Winding precision ±0 turn
    Power supply 380V/50/60Hz 7Kw
    Air pressure ≥0.6MPa
    Weight ≈2300Kg
    Dimension (L)1350×(W)1000×(H)1800mm


    (2) Brief Instruction of Machine

    Machine "
    4 Winding Heads Stator Winding Equipment for 3 Phase Motor Production" is used for winding electric wires to several coils automatically and putting coils into transfer cup orderly.
    It adopts six servo motors to control the motion, like main spindle, high-speed mold dipping, turntable rotating and so on. It can achieve higher qualification rate and also has high out-put.
    Operators need to stand when operating.

    (3) Main Specifications



    1. An full-automatic winding machine with four winding heads and eight stations winding machine;

    2. It can wind four group coils separately at one time, which also can wind multi-layer wires.

    3. Put the coil into transfer former orderly and automatically;

    4. Six spindles are controlled by servo motors: the main spindle, high-speed mold dipping, hooking and cutting wire, turntable rotation and transfer cup index are all controlled by servo motors;

    5. Especially suitable for stators with high slot fill factor and small slot opening;

    6. Winding mode such as automatic skip, automatic cutting and automatic indexing can be finished successively at one time;

    7. Parameters can be set in human-machine interface, winding tension is adjustable;

    8. Obtain continuous or discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding;

    9. It saves labor and has high efficiency.


    (4) Services

    We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.
    Design & manufacturing are as customer's request. For example, shape design, components brand and machine color,etc. can be specilized if customer has special request. Moreover, we can help to arrange the layout of machines of customer site when necessary.
    Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.

    (5) Production Line Service

    With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.
    So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.

    4 Winding Heads Stator Winding Equipment for 3 Phase Motor Production

    (6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd

    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a manufacturer in Suzhou city, China, which is specialized in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.
