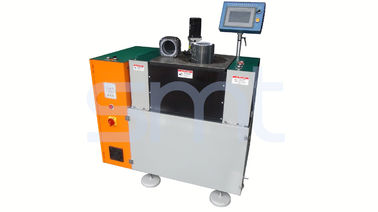

Multi Slot Shape Stator Insulation Paper Inserter , Electric Motor Winding Equipment

Multi Slot Shape Stator Insulation Paper Inserter , Electric Motor Winding Equipment

Multi Slot Shape Stator Insulation Paper Inserter , Electric Motor Winding Equipment

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO / BV / SGS
Model Number: SC160

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Normally, slot Insulation Machine is packaged with plywood cases.
Delivery Time: 35-40 days after placing order
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Name: Multi Slot Shape Stator Insulation Paper Inserting Machine Model: SMT-SC160
Stack Height: ≤160mm Cuff Height: 3~7mm
TAKT Time: ≈0.8s/s Air Pressure: ≥0.5MP

Specialized Slot Insulation Machine for Medium-size Induction Motors SMT-SC160




1. Suitable for small and medium-sized three phase motor, gasoline generator, etc.
2. inserting insulation paper automatically from bottom of stator slot;
3. automatic paper feeding, edge folding and forming; characterized by low noise, fast speed, excellent forming, etc.;
4. slot number change is controlled by electric;
5. interval slot inserting and skip slot inserting could be at option;
6. it is convenient and easy for different slot number stator production and changing tooling.



(1) Technical Parameters



Model SMT-SC160
Stack height ≤160mm
Stator I.D Φ70~Φ150mm
Stator O.D ≤Φ200mm
Cuff height 3~7mm
Insulation paper’s thickness ≤0.35mm
TAKT time ≈0.8s/s
Power supply 380V/50/60Hz 1.1Kw
Air Pressure ≥0.5MPa
Weight ≈550Kg
Dimension(L×W×H mm) 1250×1100×1500mm



(2) Brief Instruction of Machine



Machine "Specialized Slot Insulation Machine for Medium-size Induction Motors" is used for inserting insulaton paper to stator slots automatically at one time, especially for stators with different slot shapes.

The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.



(3) Main Specifications



1. A special design for stators with different slot shapes and sizes, like washing machine motor, fan motor, compressor motor, etc.;

2. It can finish insulation paper insertion with one roll insulation paper at one time;

3. Automatic adjustment of paper length and width, paper cutting, cuff forming and inserting when inserting paper to different-size and different-shape slot;

4. Paper feeding and cutting are finished by servo motors;

5. Interpersonal interface sets required specific parameters;

6. Forming mold is adjustable to different slot sizes automatically;

7. Characterized by simple operation, low noise, fast speed and high automation.

8. Indexing can be configured with servo motors or stepper motors.



(4) Services



We're dedicated to R&D and manufacturing machines for different induction motors production, such as Coil Winding machine, Coil Inserting Machine, etc.

Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.

Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be without charge.

Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.



(5) Application



Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, industrial three-phase motor, fan motor and new energy motor, etc.





(6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a Chinese manufacturer, which is specialize in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.
