PCL Program Stator Coil Final Coil Forming Machine Motor Production Line

PCL Program Stator Coil Final Coil Forming Machine Motor Production Line

PCL Program Stator Coil Final Coil Forming Machine Motor Production Line

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-ZZ160

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 1 - 4.1 months
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 1 - 3.2 month
Contact Now
Detailed Product Description
Name: Induction Motor Stator Coil Winding Shaping And Forming Machine Model: ZZ160
Stator I.D.: 50-100mm Stator O.D.: ≤160mm
Machine Weight: About 700kg Machine Dimension (LxWxH): 650x 900 X 2300mm

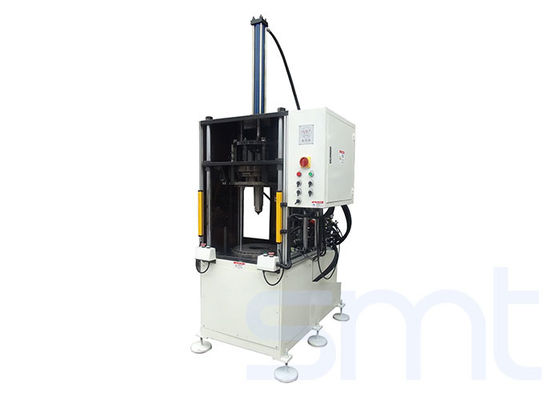

Automatic Compressor Motor Stator Coil Final Forming Machine SMT - ZZ160



Stator Winding Middle Forming Machine is driven by hydraulic system; PLC programming;individual guard teeth in each slot settles fied wire and jump wire to ensure the reliability of electrical leakage distance; whole schematic design of inner expansion, outer wrapping and edge forming ensures appropriate winding outside dimension. Middle forming is done after winding inserting but before winding lacing.



(1) Main Technical Features



Model ZZ160
Stack height 16-100mm
Stator I.D 50-100mm
Stator O.D ≤160mm
Displacement of cylinder 20F
Input 380V/50/60Hz
Power supply 3.75kw
Machine weight About 700kg
Machine dimension (LxWxH) 650x 900 x 2300mm



(2) Application



Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.

PCL Program Stator Coil Final Coil Forming Machine Motor Production Line
(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
