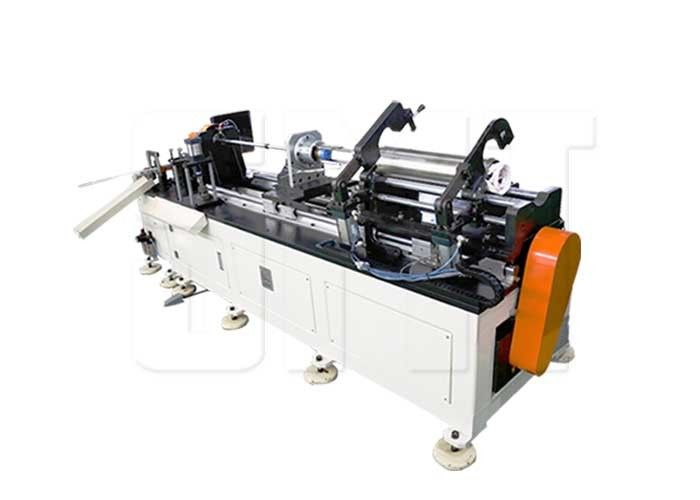

Horizontal Stator Winding Inserting Machine For Deep Well Pump Motors SMT - QX600

Horizontal Stator Winding Inserting Machine For Deep Well Pump Motors SMT - QX600

    • Horizontal Stator Winding Inserting Machine For Deep Well Pump Motors SMT - QX600
    • Horizontal Stator Winding Inserting Machine For Deep Well Pump Motors SMT - QX600
  • Horizontal Stator Winding Inserting Machine For Deep Well Pump Motors SMT - QX600

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / BV / SGS
    Model Number: QX600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later.
    Packaging Details: Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size.
    Delivery Time: 50 workdays after advance payment
    Supply Ability: About 15 Set/Sets per 40 days
    Contact Now
    Detailed Product Description
    Name: Horizontal Winding Insertion Machine Special For Deep Well Pump Motors Model: SMT-QX600
    Stator O.D: ≤Φ160mm Stator I.D: ≤Φ40mm
    Applicative Wire: PVC / Cooper Wires Colour: Customized

    Horizontal Winding Insertion Machine Special for Deep Well Pump Motors SMT-QX600



    Horinzontal Motor Coil Inserting Machine special for submersible pump / deep well pump motor winding insertion.



    (1) Technical Parameters



    Model SMT-QX600
    Stator I.D ≤Φ40mm
    Stator O.D ≤Φ160mm
    Stack height ≤600mm
    Compatible wire type Copper wire / PVC wire
    Power 5Kw
    Power supply 380V 50HZ
    Air pressure ≥0.6Mpa
    Weight ≈900Kg
    Dimension (L)2650×(W)820×(H)1100mm



    (2) Brief Instruction of Machine



    Machine "Horizontal Winding Insertion Machine Special for Deep Well Pump Motorsy" is used for inserting electric coils and wedge insulation to stator slots automatically at one time.

    Operators need to transfer coils wound by winding machines to coil inserting machine by manual, as well as the wedge papers.



    (3) Main Specifications



    1. The machine is specialized for inserting coils of submersible pump motor stator;

    2. Suitable for motor stators with large stack height and small inner diameter;

    2. It can insert the coil and wedge paper into stator slot automatically at a time;

    3. Coil pushing is driven by servo motors;

    4. Both copper wires and PVC wires can be inserted automatically;

    5. Wedge paper cutting and forming machine is combined with coil inserting machine;

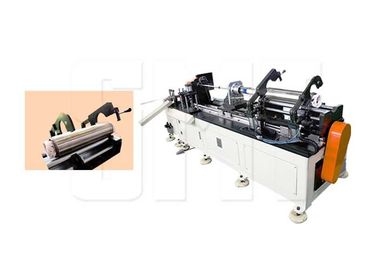

    Horizontal Stator Winding Inserting Machine For Deep Well Pump Motors SMT - QX600



    (4) Services



    Combining years of experience, we can provide high-qualified machines which are simple operated and easy for maintenance, including single set machine or whole production line machines.

    Before placing an order, we can have a technical discussion if customers have any doubt. And if customers have any requirement in design or allocation, we also will try our best to satisfy them.

    Besides, our warranty time is one year and during this period, we’ll offer some spare parts for free if they’re broken due to quality issue or design issue. Before delivery, we’ll also offer some wearing parts for free.

    When customers have some problems with the machine, inform us and our after-sales engineers will be in customer’s site in the shortest time.



    (5) Application of SMT Machines



    SMT machines can finish slot insulation insertion, coil winding, inserting, forming and lacing automatically, which are suitable for various motors of new energy automobile, generator, garden tools, fans, exhaust fan, compressor, water pump and deep well pump, household appliance, reducer, BLDC motor and so on.



    (6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co., Ltd.


    Suzhou Smart Motor Equipment Manufacturing Co., Ltd. is located in Suzhou, a commercial and tourist city in Yangtze River Delta, which is convenient for our foreign trade.

    We SMT are the manufacturer of motor production machines, like Winding Machine, Coil Inserting Machine and so on.

    Since established in year 2010, we began to provide customers with high-qualified products, excellent after-sales service and professional technical support. And we expanded our company site from 800 square meters to 5000 square meters within one year. From that time on, we began to do foreign trade by ourselves and keep developing the foreign market.

    Until now, we have many customers like SEW, ABB, Siemens, WEG, REGAL, HITACHI, EMERSON and YILMAZ etc. from different countries.
