Semi Automatic Winding Inserting Machine , Motor Stator Slot Winding / Coil Inserting Machine

Semi Automatic Winding Inserting Machine , Motor Stator Slot Winding / Coil Inserting Machine

  • Semi Automatic Winding Inserting Machine , Motor Stator Slot Winding / Coil Inserting Machine
Semi Automatic Winding Inserting Machine , Motor Stator Slot Winding / Coil Inserting Machine
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-QX10
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plywood Box With Sealing.
Delivery Time: 51-62 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 42-58 days
Contact Now
Detailed Product Description
Name: Automatic Slot Armature Winding Machine / Automatic Machine Model: SMT-QX08
Stator I.D.: 110-210mm Stator O.D.: ≤260mm
Core Length: ≤250mm Slot Number Range: 24-48 Slots
Automatic Grade: Semiautomatic Demoulding: Pull Core
High Light:

automatic motor winding machine


induction motor winding machine

SMT-QX10 Winding Inserting Machine , Automatic Slot Armature Winding Machine



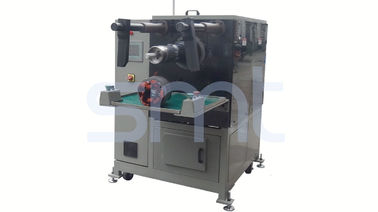

This machine is used to inserting coil and wedge into stator. And it can insert coil and wedge simultaneously. This HMI can set all the necessary data. With easy and convenient tooling change process, this machine is suitable for three phase motor, fan motor and other motor, with a veriety model number but low output.

Wedge fedding mode can be set according to different motor.Horizontal Winding Inserting Machine is equipped with human-machine control interface, It has the characteristic of widely application, high automation, easy operation and convenient tooling change.


(1) Main Technical Features


Model SMT-QX10
Stator I.D 110-210mm
Stator O.D ≤260mm
Core Length ≤250mm
Tooling stroke ≤90mm
Compatible wire CU/AL
Slot number range 24-48 slots
Power supply 380V/50/60Hz 6.5Kw
Weight 1160kg
Dimension (L)2370×(W)1260×(H)1710mm


(2) Application


The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

(3) Our Service


Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Semi Automatic Winding Inserting Machine , Motor Stator Slot Winding / Coil Inserting Machine 0

(6) About Us


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
