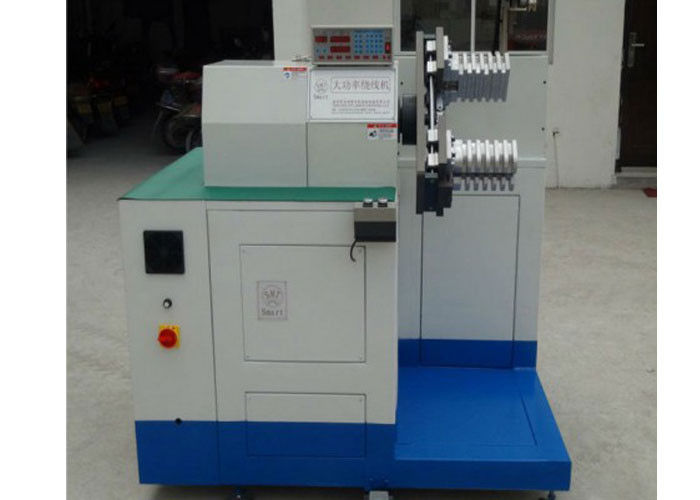

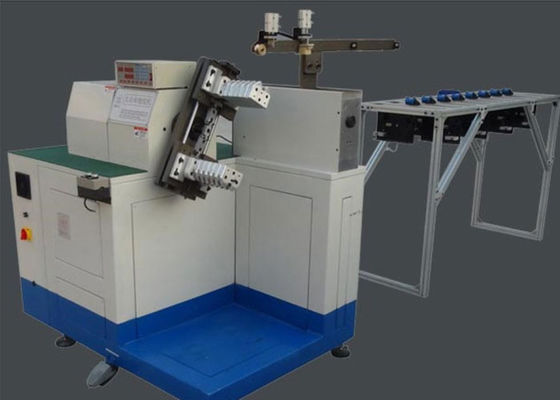

SMT - DR650 Electric Motor Winding Machine 2.2Kw ISO9001 / SGS

SMT - DR650 Electric Motor Winding Machine 2.2Kw ISO9001 / SGS

    • SMT - DR650 Electric Motor Winding Machine 2.2Kw  ISO9001 / SGS
    • SMT - DR650 Electric Motor Winding Machine 2.2Kw  ISO9001 / SGS
  • SMT - DR650 Electric Motor Winding Machine 2.2Kw  ISO9001 / SGS

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001 / SGS
    Model Number: SMT-DR650

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box or You Can Tell Us.
    Delivery Time: 38 - 77 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 44 - 71 days
    Contact Now
    Detailed Product Description
    Name: Automatic Motor Stator Coil Winding Machine / Stator Winding Machine Demoulding: Automatic
    Transfer Number: 2-6pcs Power Supply: 220V/50/60Hz 2.2Kw
    Winding Head: 2pcs Wire Diameter: 0.3-1.2mm
    Effective Length Of The Tooling: ≤400mm Wegiht: 980kg
    Color: White
    High Light:

    Auto Coil Winding Machine


    Automatic Armature Winding Machine

    SMT - DR450 Electric Motor Winding Machine 2.2Kw ISO9001 / SGS



    Information needed for stator winding inserting machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator lamination drawing
    2. Stator stack drawing
    3. Wire connection drawing
    4. Stator application
    5 Required productivity

    (1) Main Technical Parameter


    Model DR650
    Swing diameter ≤650mm
    Effective length of the tooling ≤400mm
    Parallel wire number ≤20pcs
    Wire diameter 0.3-1.2mm
    Wire arraying width 400mm
    Power supply 220V/50/60Hz 2.2Kw
    Machine weight 950kgs
    Air Pressure 0.4-0.6MPa
    Machine dimension (L)1500*(W)1700*(H)1550mm


    (2) The operation steps of this machine

    Production efficiency of this machine
    Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
    Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

    (3) Machine Main function and Characteristic

    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.


    (4) OEM/ODM Profile

    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


    (5) Production Line Profile


    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    SMT - DR650 Electric Motor Winding Machine 2.2Kw  ISO9001 / SGS

    (6) About Smart


    Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
