Name: Long Motor Stator Coil Winding Machine Automatically Flier: 200mm
Transfer Number: 2-6pcs Power Supply: 220v/50/60Hz 3Kw
Dimension: 2300x 2200 X 2000mm Winding Head: 8pcs
Air Pressure: 0.4-0.6MPa Color: Yellow/White

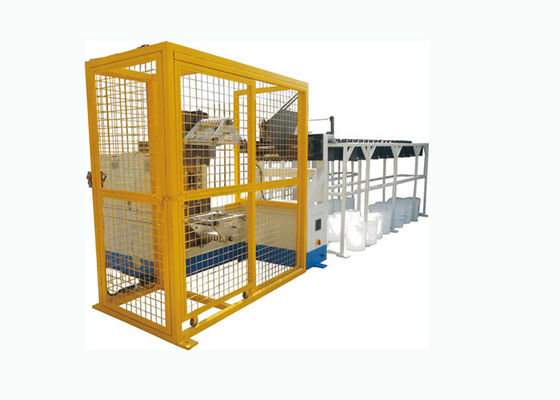

Long Motor Stator Coil Winding Machine Automatically SMT - DR1200​





a. Row of thread with eight winding head, the winding head length and elevation can be easily adjusted.
b.Equipped with mobile wire frame (including eight group bobbin and eight spools ,size is 120mm × 300mm diameter ).
c. With two mold spindle :dimensions 16 × 16 × 630mm
d. Supply frame size is 800 × 800 × 780mm.
e. Install brake resistors, the position more accurately



(1) Main Technical Date



Item Data
Model DR1200
Swing Diameter ≤900mm
Wire diameter 0.4 - 1.5mm
Paralle Wire No. ≤ 40pieces
Air Pressure 0.4 -0- 0.6 MPa
Power supply 220V/ 50/60Hz, 3kw
Machine weight About 1100kg
Machine dimension (LxWxH) 2300x 2200 x 2000mm



(2) Application:
This machine is suitable for 2 poles, 4 poles coils winding.

(3) Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



(6) About Our Factory



Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
