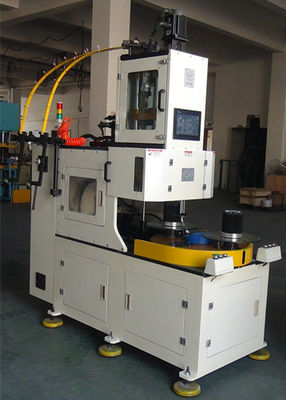

Automatic Stator Coil Winder Electric Motor Winding Machine / Wire Winding Equipment

Automatic Stator Coil Winder Electric Motor Winding Machine / Wire Winding Equipment

Automatic Stator Coil Winder Electric Motor Winding Machine / Wire Winding Equipment

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO9001/SGS/CE
Model Number: SMT-LR100 / LR200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case Suitable for Sea Transportation.
Delivery Time: 30 - 43 days for 1set
Payment Terms: T/T, L/C,
Supply Ability: 2pcs/ 56 - 79 days
Contact Now
Detailed Product Description
Name: Automatic Stator Coil Winder / Wire Winding Equipment Transfer Number: 2-6pcs
Power Supply: 380v/50/60Hz 7Kw Max Stack Height: ≤70mm
Automatic Grade: Full-Automatic Wire Diameter: Dia 0.1-1.0mm

Electric Motor Winding Machine For Car Generator Alternator SMT - LR100 /

LR200



Adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. This machine is suitable for winding the coil for big power motor. The tooling could be auto extend and retract. Therefore, it is no need to discharge the tooling when taking out the finished coil. Thus it can reduce the labor and improve the effciency. It could produce different dimension coils which is for same series size stator by adjusting the tooling, and tension is adjustable too.



(1) Main Technical Data




Model
SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200 LR100 LR200
Winding Head 1 1 1 1 2 2
Wire Diameter(mm) 0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2 0.2~1.0 0.2~1.0
Unload Speed ≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min 3000 3000
Stack Height ≤80mm ≤120mm ≤150mm ≤230mm ≤70mm ≤70mm
Winding Precision + 0 + 0 + 0 + 0 + 0 + 0
Power Supply 380v/50/60HZ 8Kw 8Kw 9Kw 7Kw 7Kw
Air Pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6pa ≥0.6pa
Weight ≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg ≈1950Kg ≈2300Kg
Dimension
(L×W×Hcm)
180×110×200 180×120×220 180×130×230 220×180×250 180×130×205 135×100×180



(2) Application


This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(3) Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Automatic Stator Coil Winder Electric Motor Winding Machine / Wire Winding Equipment

(6) About Our Factory

Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
