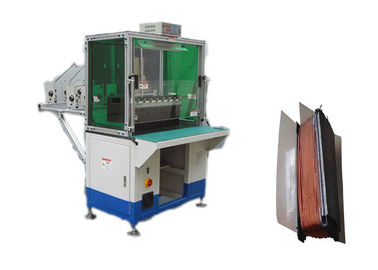

Multi Layer Electric Motor Winding Machine for Micro Pump Motor SMT-DR08

Multi Layer Electric Motor Winding Machine for Micro Pump Motor SMT-DR08

  • Multi Layer Electric Motor Winding Machine for Micro Pump Motor SMT-DR08
Multi Layer Electric Motor Winding Machine for Micro Pump Motor SMT-DR08
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO9001/SGS
Model Number: SMT-DR08
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box or just do as your requirement.
Delivery Time: 4-8 weeks
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 4-8 weeks
Contact Now
Detailed Product Description
Name: Multi Layer Automatic Coil Winding Machine For Micro Pump Motor Non-Load Speed: ≤1500r/min
Flier: 200mm Transfer Number: 2-6pcs
Dimension: (L)1500*(W)1200*(H)2100mm Winding Head: 8pcs
Air Pressure: ≥0.45MPa Transfer Distance: ≥170mm
Automatic Grade: Semi-Automatic Applicable Wire Size: 0.1-1.2mm
High Light:

Auto Coil Winding Machine


Automatic Ceiling Fan Winding Machine

Multi Layer Electric Motor Winding Machine for Micro Pump Motor SMT-DR08



1. Can preset 100 kinds of wire winding technique, easy to read them;
2. Automatically wire inserting function, can complete the wire winding technique following the setting;
3. Winding tension adopts two-way Mitsubishi magnetic tensioner to set winding, inserting, standby;
4. Fast change-over toolings;
5. Has 3 sets of Japan Panasonic servo motor (1X1KW, 2X1.5KW), lastest series of OMRON PLC, they have stable and realiable calculation relation, equipped with Japan Pro-face 10.4 color touch screen and MITSUBISHI tensioner, wire winding technique will be flexible to set, and has various kinds of failure display and acoustio-opitical alarm.
6. Pneumatical fittings use the well-famous import bands.


(1) Main Technical Parameter


Model DR08
Wire Diameter 0.08-0.8mm
No - load Speed ≤3000r/min
Winding head 8pcs
Diameter of frame 20-120mm
Max.Transfer distance ≤250mm
Air Pressure ≥0.4MPa
Power Supply 220V/50/60Hz 0.75Kw
Weight 850kgs
Dimension (L)1500*(W)1200*(H)2100mm


(2) The operation steps of this machine

Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

(3) Machine main function and characteristic

Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.


(4) OEM/ODM Profile

Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


(5) Production Line Profile


With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Multi Layer Electric Motor Winding Machine for Micro Pump Motor SMT-DR08 0

(6) About Smart

SMT Alliance Automation (Suzhou) Co., Ltd. is the Sino-US joint venture between Suzhou Smart Motor Equipment Manufacturing Co., Ltd. , established in 2010, and Alliance Automation (Suzhou) Ltd., the subsidiary in China of Alliance Winding Equipment, Inc. established in 1947. Based on AWE’s decades of R&D and technology experience, SMT Alliance integrate technology design, manufacturing, managing and marketing to achieve complementary advantages and joint development.
The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
