|Name:||Big Size Motor Stator Coil Winding Machine Motor Rewinding Machine||Flier:||200mm|
|Transfer Number:||2-6pcs||Power Supply:||220v/50/60Hz 3Kw|
|Winding Head:||8pcs||Air Pressure:||0.4-0.6MPa|
Auto Coil Winding Machine,
Automatic Ceiling Fan Winding Machine

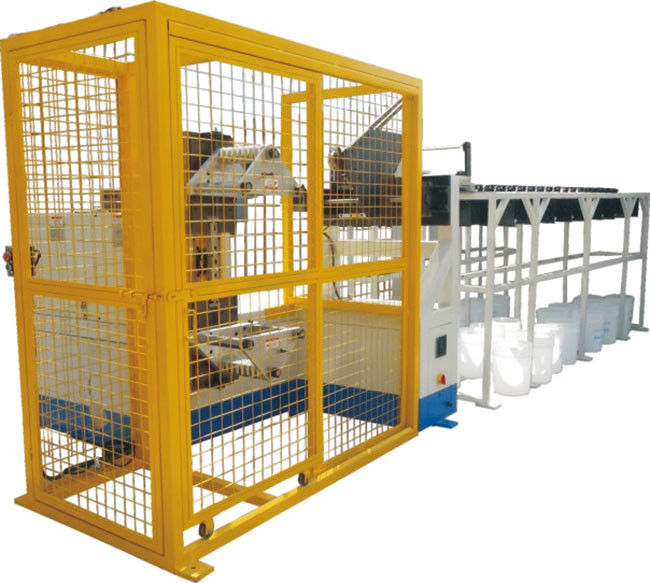

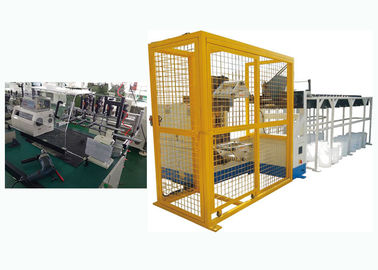

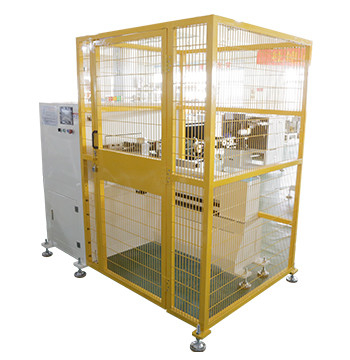

Big size motor stator coil winding machine motor rewinding machine
1. This machine has two working stations.
2. This machine is suitable for winding coil of ceiling fan table stator and external armature.
3. Machine movement is automatic.
4. It is controlled by micro computer.
Ceiling Fan Coil Winding Machine has two working stations. Controlled by micro computer, it could achieve auto winding, auto array, auto indexing; array and indexing is controlled by stepping motor, winding is controlled by frequency converting motor, turn number could be accurate up to 0.1 round.
(1) Main Technical Date
|Wire diameter||0.4 - 1.5mm|
|Paralle Wire No.||≤ 40pieces|
|Air Pressure||0.4 -0- 0.6 MPa|
|Power supply||220V/ 50/60Hz, 3kw|
|Machine weight||About 1100kg|
|Machine dimension (LxWxH)||2300x 2200 x 2000mm|
This machine is suitable for 2 poles, 4 poles coils winding.
(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
(4) OEM/ODM Profile
Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.
(5) Production Line Profile
With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
(6) About Our Factory
Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
