Horizontal Type Coil Inserting Machine SMT-QX10

Horizontal Type Coil Inserting Machine SMT-QX10

    • Horizontal Type Coil Inserting Machine SMT-QX10
    • Horizontal Type Coil Inserting Machine SMT-QX10
  • Horizontal Type Coil Inserting Machine SMT-QX10

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT-QX10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box With Sealing.
    Delivery Time: 32-51 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 32-51 days
    Contact Now
    Detailed Product Description
    Name: With The Touch Screen Automatic Stator Coil Inserting Machine Stator I.D.: 110-210mm
    Stator O.D.: ≤260mm Dimension: (L)2370×(W)1260×(H)1710mm
    Automatic Grade: Full-Automatic Tooling Travel: ≤70mm
    Slot Number Range: 24-48 Slots OEM: Yes
    High Light:

    Wedge Inserting Machine


    Stator Winding Inserting Machine

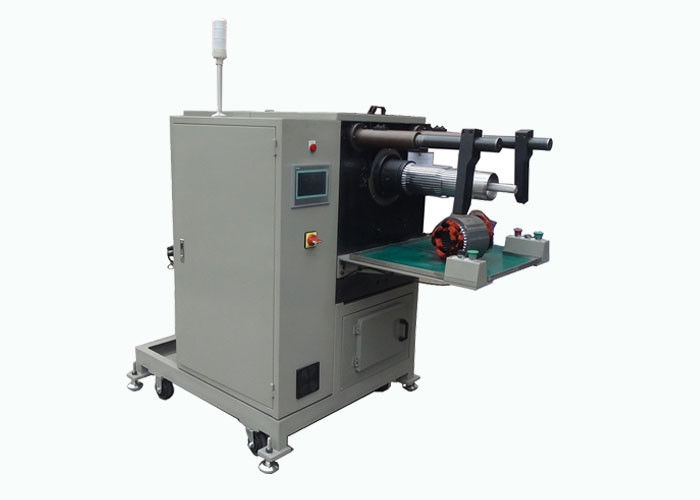

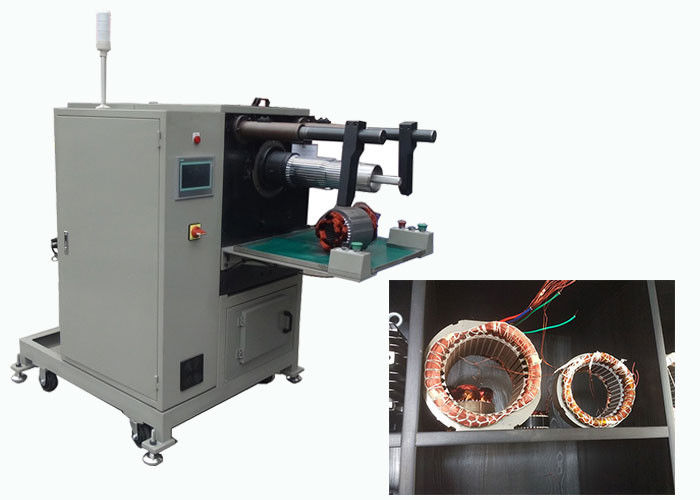

    With The Touch Screen Automatic Stator Coil Inserting Machine SMT-QX10



    1. suitable for inserting coil and wedge into stator slot by servo system;
    2. can insert the coil and wedge or coil and wedge in the mid of slot into stator at a time;
    3. wedge feeding is to be done by stepping motor, and coil and wedge inserting is by servo system;
    4. different parameter could be set in human-machine interface;


    (1) Main Technical Features


    Model SMT-QX10
    Stator I.D 110-210mm
    Stator O.D ≤260mm
    Core Length ≤250mm
    Tooling stroke ≤90mm
    Compatible wire CU/AL
    Slot number range 24-48 slots
    Power supply 380V/50/60Hz 6.5Kw
    Weight 1160kg
    Dimension (L)2370×(W)1260×(H)1710mm


    (2) Application


    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

    (3) Our Service


    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


    (4) OEM/ODM


    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


    (5) Production Line Profile


    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


    (6) About Us


    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
