|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Plywood Box or just do as your requirement.|
|Delivery Time:||4-8 weeks|
|Payment Terms:||T/T, L/C|
|Supply Ability:||1pcs / 4-8 weeks|
|Name:||Multi Layer Automatic Coil Winding Machine For Micro Pump Motor||Non-Load Speed:||≤1500r/min|
|Air Pressure:||≥0.45MPa||Transfer Distance:||≥170mm|
|Automatic Grade:||Semi-Automatic||Applicable Wire Size:||0.1-1.2mm|
Auto Coil Winding Machine,
Automatic Ceiling Fan Winding Machine

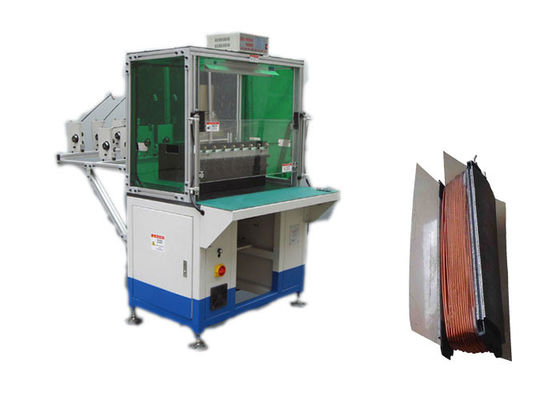

Multi Layer Electric Motor Winding Machine for Micro Pump Motor SMT-DR08
1. Can preset 100 kinds of wire winding technique, easy to read them;
2. Automatically wire inserting function, can complete the wire winding technique following the setting;
3. Winding tension adopts two-way Mitsubishi magnetic tensioner to set winding, inserting, standby;
4. Fast change-over toolings;
5. Has 3 sets of Japan Panasonic servo motor (1X1KW, 2X1.5KW), lastest series of OMRON PLC, they have stable and realiable calculation relation, equipped with Japan Pro-face 10.4 color touch screen and MITSUBISHI tensioner, wire winding technique will be flexible to set, and has various kinds of failure display and acoustio-opitical alarm.
6. Pneumatical fittings use the well-famous import bands.
(1) Main Technical Parameter
|No - load Speed||≤3000r/min|
|Diameter of frame||20-120mm|
|Power Supply||220V/50/60Hz 0.75Kw|
(2) The operation steps of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.
(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
(4) OEM/ODM Profile
Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.
(5) Production Line Profile
With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
(6) About Us
Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
Contact Person: Larry
