Four Working Station Automatic Stator Automatic Motor Winding Machine 12 Months Warranty

Four Working Station Automatic Stator Automatic Motor Winding Machine 12 Months Warranty

  • High Light

    automatic motor winding machine

    ,

    motor winding equipment

  • Name
    Four Working Station Automatic Stator Winding And Coil Inserting Machine
  • Stator I.D.
    110-210mm
  • Stator O.D.
    ≤260mm
  • Slot Number Range
    24-48 Slots
  • Warranty
    12 Months
  • Ppropriate Wire
    Copper Or Aluminium Wire
  • Color
    White
  • Mould Life
    1,000,000 Slots
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-RQ100
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With Sealing.
  • Delivery Time
    45-75 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 45-69 days

Four Working Station Automatic Stator Automatic Motor Winding Machine 12 Months Warranty

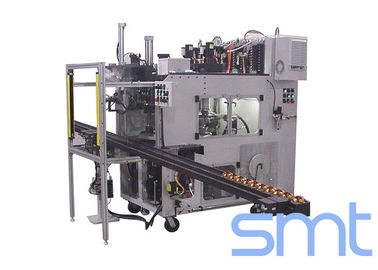

Four Working Station Automatic Stator Winding and Coil Inserting Machine





It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.



This machine is can do coil winding, coil inserting and wedge inserting. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer. This machine can detect the wire coating damage. The inserting station is controlled by servo motor. The parameter can be set in the touch screen.
With serval station working simultaneously, this machine is efficiency and saves labor cost.



(1) Main Technical Features



Model SMT-RQ100
Stator I.D 110-210mm
Stator O.D ≤260mm
Core Length ≤250mm
Tooling stroke ≤90mm
Compatible wire CU/AL
Slot number range 24-48 slots
Power supply 380V/50/60Hz 6.5Kw
Weight 1160kg
Dimension (L)2370×(W)1260×(H)1710mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.


(3) Our Service



Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
