Automatic Stator Needle Winding Machine For Printer BLDC Motor Stator OD 140mm

Automatic Stator Needle Winding Machine For Printer BLDC Motor Stator OD 140mm

    • Automatic Stator Needle Winding Machine For Printer BLDC Motor Stator OD 140mm
    • Automatic Stator Needle Winding Machine For Printer BLDC Motor Stator OD 140mm
  • Automatic Stator Needle Winding Machine For Printer BLDC Motor Stator OD 140mm

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: SGS / ISO 9001 / BV
    Model Number: NR1405

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Machine are quoted in USD dollars and the price can be FOB, CIF and CFR, which depends on customers product.
    Packaging Details: Plastic stretching film, vacuum package, plywood cases. The dimension depends on actual machine size.
    Delivery Time: 50 workdays after downpayment
    Payment Terms: T/T, L/C
    Supply Ability: About 40 Set/Sets per quarter
    Contact Now
    Detailed Product Description

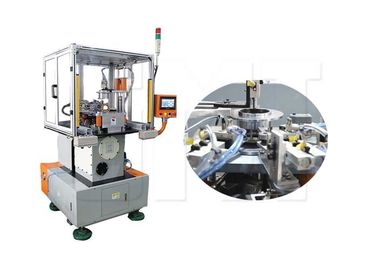

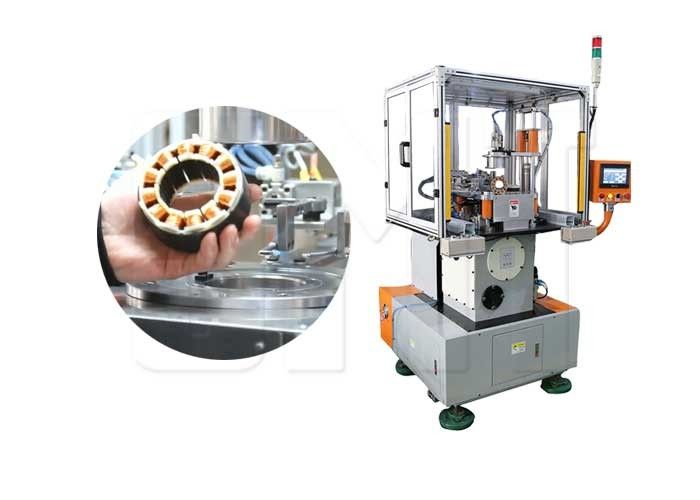

    Name: Automatic Stator Needle Winding Machine For Printer BLDC Motor Stator OD 140mm Model: SMT-NR1405
    Nozzle Material: Tungsten Steel Wire Nozzles: 1 To 3 Pcs
    Stack OD: Less Than 140mm Warranty: One Year
    High Light:

    ceiling fan coil winding machine

    ,

    electric motor coil winding machine

    Automatic double stations needle motor coil winding machine for BLDC in slot stator

    1 to 3 winding needles winding wires on stators together directly. Auto wire hooking, cutting and arraying are also automatical.

    (1) Technical Parameters



    Model SMT-NR1405
    Needle number 1~3 needles
    Stator OD ≤Φ140mm
    Stator ID ≥Φ30mm
    Stator stack height ≤80mm with plastic frame
    Wire diameter range Φ0.08~Φ1.0 mm
    Load winding speed ≤600 r/min
    Winding precision ±0 turn
    Power 4.5Kw
    Weight 1000Kg
    Dimension (L)760×(W)1200×(H)2000mm


    Product overview:
    The double stations motor stator coil winding machine is used for the BLDC motor manufacturing, adoptsa double-station design for multi-pole stator coil winding.Each action cycle will wind 2 stators at the same time, Only manual loading is required, the coil winding machine automatically clamps the mold, which reduces the labor intensity and greatly improves the production efficiency. Multiple tap (can be set by screen), wire clamping and wire cutting can be realized during winding process.The number of slots and the number of turns can be set by man-machine interface; all aluminum alloy (anodizing treatment) plus imported acrylic protection;electrical control ,setting and display by PLC, display and servo motor ,it is very safe and reliable.

    Application
    The BLDC needle winding machine is especially suitable for range hood motor, hair curler motor, servo motor, brushless household motor, stepper motor, fan motor, Ceiling fan motor,bladeless fan motor, brushless power tools, brushless medical equipment and other types of DC brushless motor.

    Function and Characteristics:
    1,For multi-pole BLDC stator coil winding, manual loading and unloading, automatic clamping, winding and shearing;
    2,The frame adopts thickened 4080 aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.
    3,Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
    4,Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;
    5,Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
    6,Quick change-overof tooling;(20 minutes with proficiency)
    7,Full aluminum alloy protection
    8,PLC control, fault display
    9,The wire tightness is moderate, no injury, no breakage, ect.
    10,Equipment safety index: accord with CE standard.
