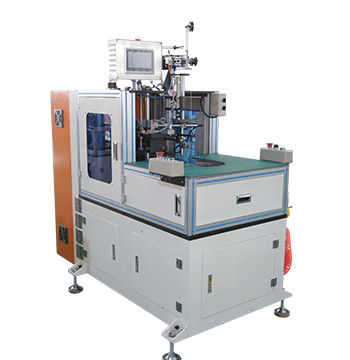

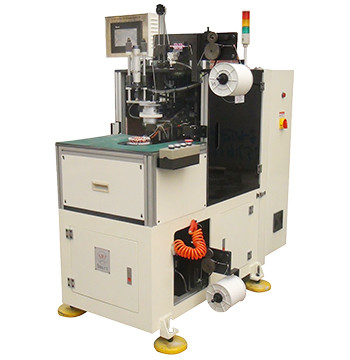

Automatic Coil Lacing Machine Double Side For Induction Motor

Automatic Coil Lacing Machine Double Side For Induction Motor

  • High Light

    Induction Motor Automatic Coil Lacing Machine

    ,

    Double Side Automatic Coil Lacing Machine

    ,

    0.4MPa Automatic Coil Lacing Machine

  • Name
    Automatic Coil Lacing Machine Double Sides Lacing For AC Motor Industrial Motor
  • Stator O.D.
    ≤Φ160mm
  • Stack Height
    20~120mm
  • Power Supply
    380V/50/60Hz 3.5Kw
  • Air Pressure
    0.4MPa
  • Color
    White/Blue/Green
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit, CE, CO
  • Model Number
    SMT - BZ51
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden case suitable for sea transportation With a Sealing Bag.
  • Delivery Time
    60 - 80 days
  • Payment Terms
    T/T , L/C
  • Supply Ability
    1pcs / 60 - 80 days

Automatic Coil Lacing Machine Double Side For Induction Motor

Automatic Coil Lacing Machine Double Sides Lacing For AC Motor Industrial Motor



Automatic Coil Lacing Machine Double Sides Lacing for AC Motor Industrial Motor





This machine is consist of machine body, needle, nozzle rotating part, needle fore and back movement,nozzle swing part, needle up and down movement part, stator indexing part,thread feeding,thread cutting part.



(1) Main Technical Information



Model SMT-BZ51
Stack height 17~100mm
Stator I.D Φ25~ Φ100mm
Stator O.D ≤Φ160mm
Height of overhang ≤40mm
Lacing mode Slot by slot/Interval slot/Fancy slot
Lacing speed ≈0.6s/s
Power supply 380V/50/60Hz 3.5Kw
Weight ≈800Kg
Dimension (L)1500×(W)650×(H)1700mm



(2) Advantage



This machine adopts servo driven system, CNC control design and HIM program.

The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

Main spindle adopts servo control system. The rotation speed can be set.

Two needles driven by servo system lace upper and lower coil simultaneously.

Machine can automatically feed thread and cut thread. There is no need to tie a knot.

Tooling change is fast and convenient. Stator stack length range is 50-130mm.

Lacing tension can be set,

Production capacity ≤1s/slot.

Should be no copper wire snap and wire enamel broken.

Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

his machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.


(3) Machine Main Characteristic



1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

3. This machine is suitable for the big stator with high winding over-hang.

4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.



(4) OEM/ODM



The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

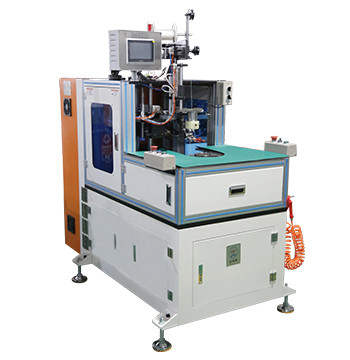

Automatic Coil Lacing Machine Double Side For Induction Motor 0

(6) About Suzhou Smart motor Equipment Manufacturing Co.,Ltd



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
