|Name:||Stator Coil Final Winding Shaping Forming Machine||Model:||ZJ300|
|Stator I.D.:||110-210mm||Stator O.D.:||≤300mm|
|Machine Dimension (LxWxH):||L3726x W1251 X H2111mm||Displacement Of Cylinder:||40L|
|After-sales Service:||Overseas Service Available|
PLC programming Coil Forming Machine,
Final Winding Shaping Forming Machine,
hydraulic Coil Forming Machine
Stator Coil Final Winding Shaping Forming Machine

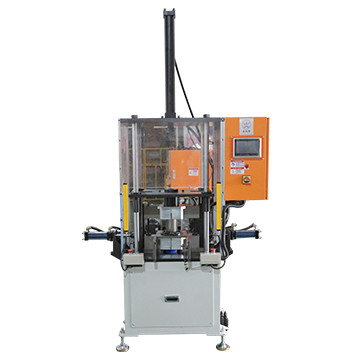

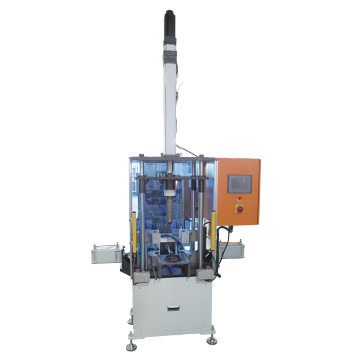

Stator Coil Final Winding Shaping forming Machine SMT - ZJ300
Driven by hydraulic system; PLC programming; tooling design adopts flexible principles of inner expansion, outer wrapping and edge forming to form the stator winding; to ensure appropriate winding outside dimension after lacing.
The middle of forming machine is full automatic by PLC control, touch screen operation, automatic wire traversing.
(1) Main Technical Date
|Stack height||70- 250mm|
|Displacement of cylinder||40L|
|Power supply||380V/50/60Hz 4.2Kw|
|Machine weight||About 2300kg|
|Machine dimension (LxWxH)||L3726x W1251 x H2111mm|
The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.
We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.
(3) Machine Main Characteristic
This machine adopts whole hydraulic system and PCL program.
This machine can adjust the forming stack length by changing washer.
Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.
Production capacity ≤13s/set (exclude loading/unloading time)
Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%
This machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.
