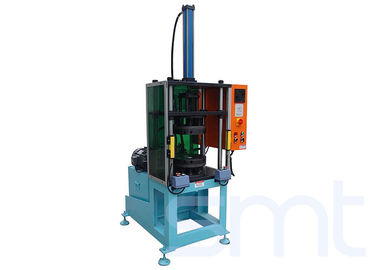

Economic Type Automatic Stator Coil Pre-Forming Machine for Motor Production

Economic Type Automatic Stator Coil Pre-Forming Machine for Motor Production

  • Economic Type Automatic Stator Coil Pre-Forming Machine for  Motor Production
Economic Type Automatic Stator Coil Pre-Forming Machine for  Motor Production
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-KZ160
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 1pcs / 4 - 9 weeks
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 4 - 9 weeks
Contact Now
Detailed Product Description
Name: Automatic Stator Coil Pre-Forming Machine Model: ZZ160
Stator I.D.: 30-100mm Stator O.D.: ≤160mm
Stack Height: 15- 100mm Power Supply: 380V/50/60Hz 3Kw
Machine Dimension (LxWxH): 1200x 7x 2200mm Machine Weight: About 800kg
Transport Package: 1 Ply-Wooden Case Power: 380V/50/60Hz
High Light:

Stator Coil Winding Machine

,

electric motor winding equipment

Electric motor stator coil forming machine/copper / aluminum wire/motor manufacturing



Stator Winding Middle Forming Machine is driven by hydraulic system; PLC programming;individual guard teeth in each slot settles fied wire and jump wire to ensure the reliability of electrical leakage distance; whole schematic design of inner expansion, outer wrapping and edge forming ensures appropriate winding outside dimension. Middle forming is done after winding inserting but before winding lacing.



(1) Main Technical Features



Model KZ160
Stack height 15- 100mm
Stator I.D 30-100mm
Stator O.D ≤160mm
Displacement of cylinder 20F
Input 380V/50/60Hz
Power supply 1.5kw
Machine weight About 800kg
Machine dimension (LxWxH) 1200x 7x 2200mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.
