Stator ID 40-100mm Coil Winding And Inserting Machine
Product Description
Coil Winding and Inserting Machine Stator ID 40-100mm ISO / SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more.
Information needed for stator winding inserting machine inquiry:
- Stator lamination drawing
- Stator stack drawing
- Wire connection drawing
- Stator application
Main Technical Features

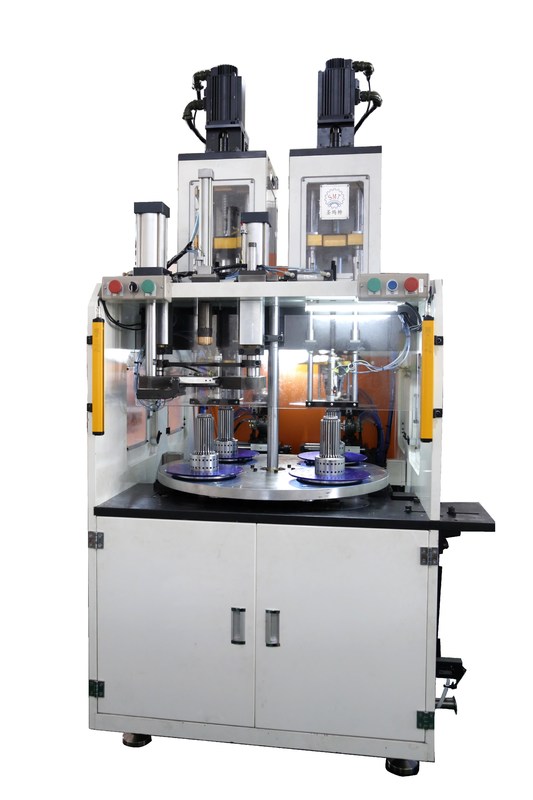

This machine automatically inserts coils and wedge paper into stators, featuring an HMI interface with fast speed, high stability, accurate positioning, and quick tooling change.
The machine includes 2 winding stations, 1 wedge making station, and 1 coil inserting station (4 stations total on rotary table). Coil inserting is achieved by double spindles individually, making it ideal for stators with high slot fill factor.
| Model | SMT-RQ100 |
|---|---|
| Core length | 20~100mm |
| Stator I.D | Φ40-100mm |
| Stator O.D | ≤160mm |
| Tooling stroke | ≤110mm |
| Compatible wire | CU/AL |
| Slot number range | 16~36slots |
| Power | 12Kw |
| Weight | 3500kg |
| Dimension | (L)1250×(W)1800×(H)2350mm |
Application
Primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors.
As a world leader, we specialize in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation, and other motor production technologies for various stator sizes and slot shapes.
Our Service
We prioritize both product quality and service to enhance your brand's global competitiveness. Whether you need machines, components, or OEM products, SMT Motor Equipment is your reliable partner.
We welcome opportunities to establish long-term business relationships with companies worldwide as suppliers, partners, and friends.
OEM/ODM
- Innovative technical team provides complete solutions tailored to unique customer requirements
- Specialized after-sale team offers rapid, door-to-door service to resolve all issues
- Extensive domestic and international service network ensures powerful support
- 24/7 customer service available through multiple communication methods
Production Line Profile
SMT provides professional consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, staff training, and complete project solutions.
