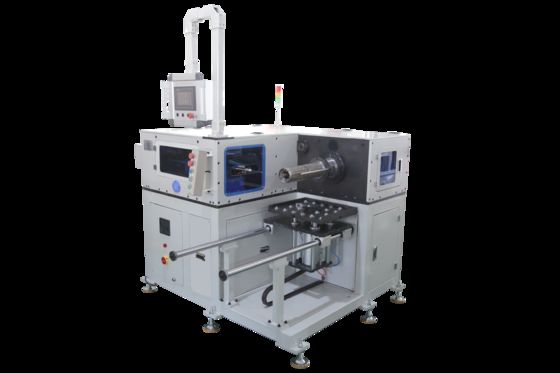

Automatic Stator Lacing Machine with Servo Motor Control and Horizontal Movable Fixture for Efficient Stator Loading
Product Summary
Automatic 7Kw Power 3-Phase 380V/50Hz Stator Lacing Machine Model: SMT-DW350A | Weight: 1050kg | For 100-200mm ID Stators Product Description Single side lacing machine designed for 100-200mm stator ID, ISO/SGS certified for quality assurance. Applications Ideal for stators used in: Single phase and ...
Product Custom Attributes
Highlight:
Automatic Stator Lacing Machine
,Servo Motor Control Stator Lacing Machine
,Horizontal Movable Fixture Stator Lacing Machine
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
ISO/SGS Audit
Model Number:
SMT-DW350A
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Plywood Box With Sealing
Delivery Time:
8-10 weeks
Payment Terms:
T/T,L/C
Supply Ability:
1pcs/7-11 weeks
Product Description
Automatic 7Kw Power 3-Phase 380V/50Hz Stator Lacing Machine
Model: SMT-DW350A | Weight: 1050kg | For 100-200mm ID Stators
Product Description
Single side lacing machine designed for 100-200mm stator ID, ISO/SGS certified for quality assurance.
Applications
Ideal for stators used in:
- Single phase and three phase motors
- Compressor and starter motors
- Washing machine and air conditioner motors
- New energy automobile motors
- Servo motors and generators
- Pump motors and household appliance motors
Technical Specifications
| Parameter | Specification |
|---|---|
| Core Length | 80~260mm |
| Stator I.D | Φ100-200mm |
| Stator O.D | Φ170-260mm |
| Stack Height Range | 90-220mm |
| Coil End Height | 60-80mm |
| Oil Cylinder Displacement | 20L |
| Air Pressure | 0.5～1MPa |
| Power | 7Kw |
| Power Supply | 3-Phase 380V/50Hz |
| Dimensions | 1500×1350×1500mm (L×W×H) |
Key Features
- Single needle automated lacing with servo motor control
- Precision needle transposition and stator indexing
- Vertical needle movement system
- Horizontal movable fixture for efficient loading/unloading
Our Service
We prioritize product quality and service excellence to enhance your global market competitiveness.
OEM/ODM Capabilities
- Customized solutions from our innovative technical team
- Specialized after-sale service with door-to-door support
- Extensive domestic and international service network
- 24/7 customer support through multiple channels
Production Line Profile
Complete motor manufacturing services including:
- Technical consulting and turn-key projects
- Cost evaluation and manufacturing know-how
- Staff training for AC/DC/BLDC motors
- Complete production from coil winding to final stator forming
About Us
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment design and production.
- 150 employees including 30+ engineers
- 20,000m² production facility
- ISO9001:2000 certified
- Complete production lines for various motor types
