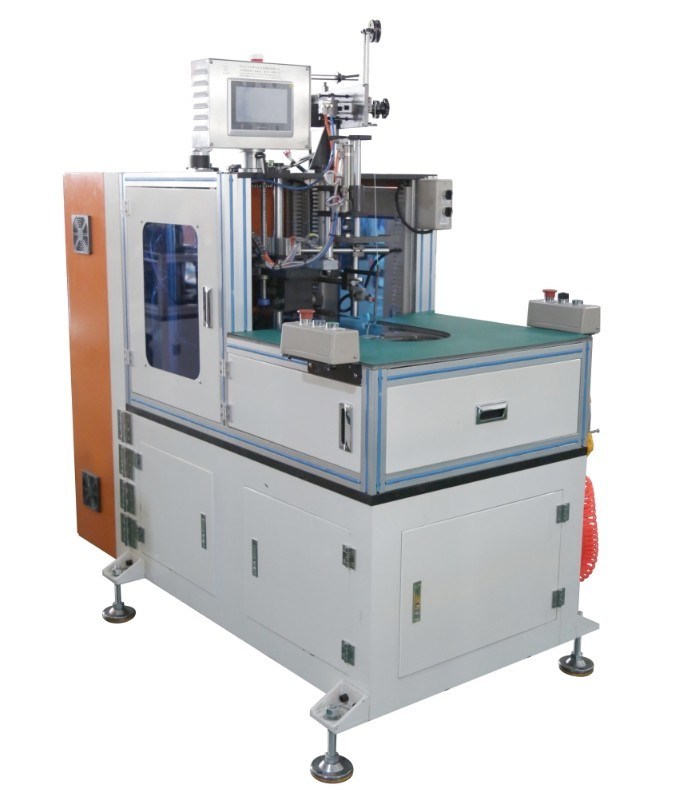

Double Sides Stator Lacing Machine with 3.5Kw Power and 3-Phase 380V/50Hz for 50-120mm ID Range
  • name

Double Sides Stator Lacing Machine with 3.5Kw Power and 3-Phase 380V/50Hz for 50-120mm ID Range

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Plywood Box With Sealing
Delivery Period: 8-10 weeks
Payment Method: T/T,L/C
Supply Capacity: 1pcs/7-11 weeks
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO/SGS Audit
Model Number
BZ51
Highlight:

3.5Kw Power Stator Lacing Machine

,

3-Phase 380V/50Hz Stator Lacing Machine

,

50-120mm ID Range Stator Lacing Machine

Product Description
Double Sides Stator Lacing Machine for 50-120mm ID Range
Double Sides Lacing Machine 50-120mm ID Range ISO/SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more.
For stator winding inserting machine inquiries, please provide the following information:
  • Stator lamination drawing
  • Stator stack drawing
  • Wire connection drawing
  • Stator application details
Main Technical Features
Model SMT-BZ51
Stator I.D Φ50-120mm
Stator O.D Φ80-160mm
Stack Height Range 40-150mm
End Coil Height 25-35mm
Power 3.5Kw
Power supply 3-Phase 380V/50Hz
Weight 900kg
Dimension (L)1500×(W)650×(H)1700mm
Application Industries
Primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. Our expertise covers stator and rotor core assembly, slot insulation, auto winding, inserting, fusing, and resin impregnation for various stator sizes and slot shapes.
Our Service
We prioritize product quality and service to enhance your brand's global competitiveness. Whether you need machines, components, or OEM products, SMT Motor Equipment is your reliable partner. We welcome long-term business relationships with companies worldwide.
OEM/ODM Capabilities
  • Innovative technical team providing complete solutions for unique requirements
  • Specialized after-sale team offering rapid, door-to-door service
  • Domestic and international service network for comprehensive support
  • 24/7 customer service available through multiple communication channels
Production Line Profile
SMT offers professional consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, and staff training.
Double Sides Stator Lacing Machine with 3.5Kw Power and 3-Phase 380V/50Hz for 50-120mm ID Range 0
About Us
SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment design, production, and sales. With 150 employees, including 30+ engineers, and 20,000 square meters of facilities, we provide complete production lines for various AC motors. Certified by ISO9001:2000 Quality Management System since 2012.
