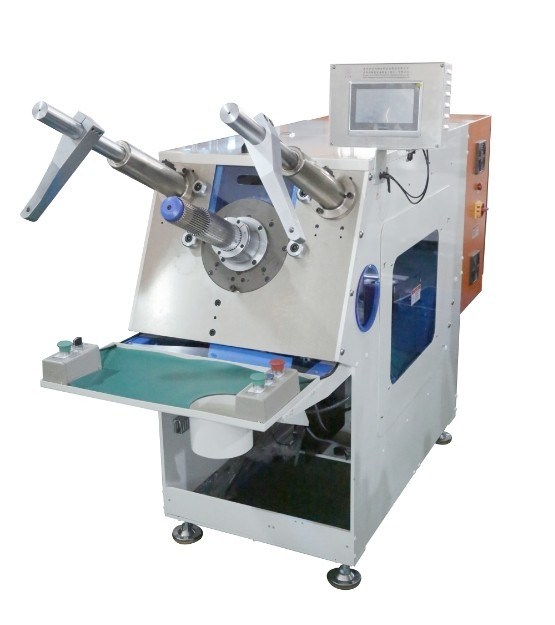

Servo Stator Coil Inserting Machine with 3-phase 380V/50Hz Power for OD Range Φ80-160mm and Stack Height Range 40-150mm
Product Summary
Servo Stator Coil Inserting Machine For ID Range Φ60-105mm Product Description Servo Coil Inserting Machine ID Range Φ60-105mm ISO/SGS Audit Application Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, ...
Product Custom Attributes
3-phase 380V/50Hz Servo Stator Coil Inserting Machine
,OD Range Φ80-160mm Stator Winding Inserting Machine
,Stack Height Range 40-150mm Coil Insertion Machine
Basic Properties
Trading Properties
Product Description
Servo Coil Inserting Machine ID Range Φ60-105mm ISO/SGS Audit
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more.
For optimal machine inquiry, please provide detailed drawings including:
- Stator lamination drawing
- Stator stack drawing
- Wire connection drawing
- Stator application details
| Model | SMT-QX16 |
|---|---|
| OD Range | Φ80-160mm |
| ID Range | Φ60-105mm |
| Stack Height Range | 40-150mm |
| Each Tooling Adjustable Distance | ≤70mm |
| Slot No | 24-36 slots |
| Air Source Pressure | 0.5~1MPa |
| Power Source | 3-phase 380V/50Hz |
| Weight | ≈1300Kg |
| Dimension | (L)1800×(W)850×(H)1700mm |
Primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. Our expertise covers stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, and auto resin impregnation for various stator sizes and slot shapes.
We prioritize product quality and service to enhance your brand's global competitiveness. Whether you need machines, components, or OEM products, SMT Motor Equipment is your reliable partner. We welcome opportunities to establish long-term business relationships worldwide.
- Innovative technical team provides complete solutions for unique requirements
- Specialized after-sale team offers rapid door-to-door service
- Domestic and international service network ensures powerful support
- 24/7 customer service available through multiple communication methods
SMT provides comprehensive motor manufacturing services including technical consulting, turn-key projects, cost evaluation, manufacturing know-how, and staff training for AC motors, DC motors, and BLDC motors.
SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, 20,000 square meters facility, and advanced production equipment, we design complete production lines for various motors. Certified with ISO9001:2000 Quality Management System since 2012.
