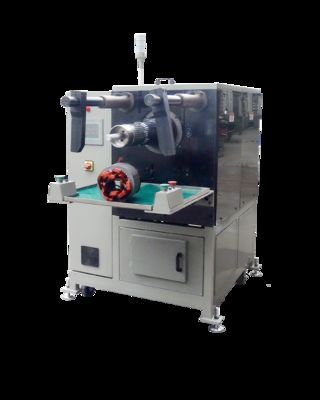

Labor Saving Automatic Motor Winding Machine, Stator OD 110-210mm
Product Summary
Labor Saving Automatic Motor Winding Machine, Stator OD 110-210mm Motor Stator Slot Automatic Coil Inserting Machine This advanced machine features AC servo motor system as source of active force and alternating frequency motor as wedge punch power. Equipped with Chinese/English HMI operating ...
Product Custom Attributes
Name:
Motor Stator Slot Automatic Coil Inserting Machine
Model:
SMT-QX08
Stator I.D.:
110-210mm
Stator O.D.:
≤260mm
Dimension:
(L)2370×(W)1260×(H)1710mm
Highlight:
automatic stator winding machine
,motor winding machine 110-210mm
,labor saving stator winder
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
ISO / SGS Audit
Model Number:
SMT-QX08
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Plywood Box With Sealing.
Delivery Time:
8 - 14 weeks
Payment Terms:
T/T,L/C
Supply Ability:
1pcs / 7 - 13 weeks
Product Description
Labor Saving Automatic Motor Winding Machine, Stator OD 110-210mm
Motor Stator Slot Automatic Coil Inserting Machine
This advanced machine features AC servo motor system as source of active force and alternating frequency motor as wedge punch power. Equipped with Chinese/English HMI operating control and breakdown self-diagnosis function. Includes stepper motor for wedge paper feeding with customizable slot settings.
Main Technical Features
| Model | SMT-QX08 |
|---|---|
| Stator I.D | 110-210mm |
| Stator O.D | ≤260mm |
| Core Length | ≤250mm |
| Tooling stroke | ≤90mm |
| Compatible wire | CU/AL |
| Slot number range | 24-48 slots |
| Power supply | 380V/50/60Hz 6.5Kw |
| Weight | 1160kg |
| Dimension | (L)2370*(W)1260*(H)1710mm |
Application
Designed for various motor applications including new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, and household appliance motors. Our expertise covers complete motor production technology from stator and rotor core assembly to final forming processes.
Our Service
We prioritize both product quality and service to enhance your brand's global competitiveness. Whether you need machines, components, or OEM products, we are committed to being your reliable partner in establishing long-term business relationships.
OEM/ODM Services
- Innovative technical team provides customized solutions
- Specialized after-sale team offers rapid door-to-door service
- Extensive domestic and international service network
- 24/7 customer support available through multiple communication channels
Production Line Profile
Our professional team provides complete motor manufacturing solutions including technical consulting, cost evaluation, manufacturing know-how, staff training, and turn-key project services for AC motors, DC motors, and BLDC motors.
About Us
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, we design and manufacture complete production lines for various motor types. Certified by ISO9001:2000 Quality Management System.
