Labor Saving Automatic Stator Winding Machine for Single Phase Motor
-
Highlight
automatic stator winding machine
,single phase motor winding machine
,labor saving stator lacing machine
-
NameLabor Saving Automatic Stator Winding Machine For Single Phase Motor
-
Stack Height17~100mm
-
Power Supply380V/50/60Hz 3.5Kw
-
Air Pressure0.4MPa
-
ColorWhite/Blue
-
CustomizedYes
-
ProductivityMAX.2000 Pcs/8 Hours For 24 Slots Stator
-
Place of OriginChina
-
Brand NameSMT
-
CertificationISO / SGS Audit
-
Model NumberSMT - SBZ160
-
Minimum Order Quantity1 Set
-
PriceNegotiable
-
Packaging DetailsPlywood Box With a Sealing Bag.
-
Delivery Time42 - 78 days
-
Payment TermsL/C,T/T
-
Supply Ability1pcs / 42 - 76 days
Labor Saving Automatic Stator Winding Machine for Single Phase Motor

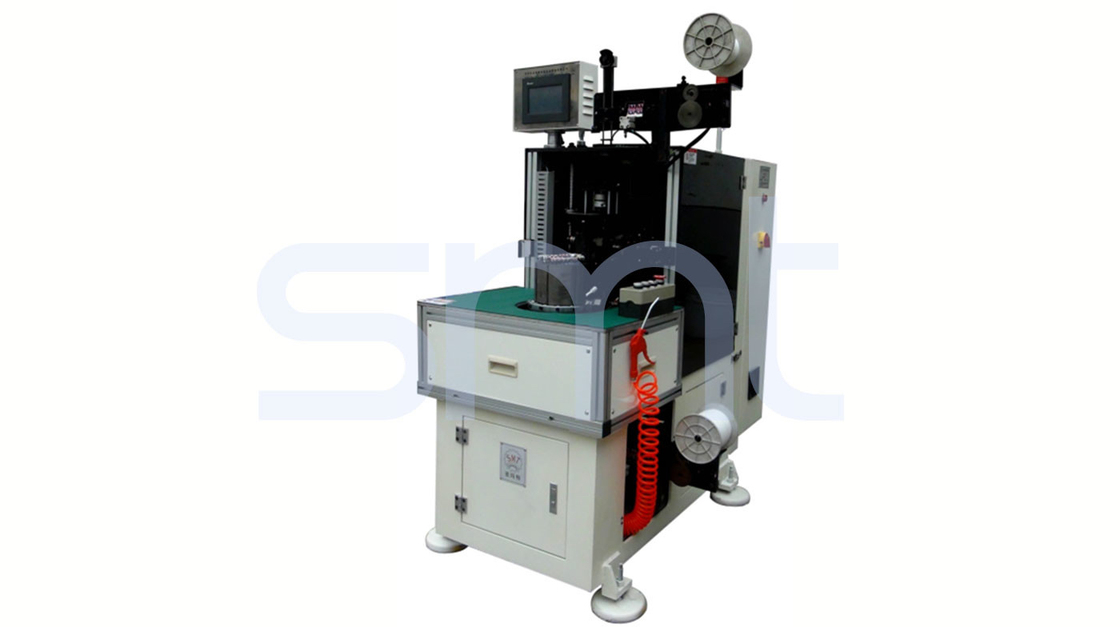

Automatic Single Phase Motor Stator Winding Lacing Machine SMT-SBZ160
This machine is designed for micro induction motors including conditioner motors, washer motors, compressor motors, fan motors, alternator motors, and pump motors.
Main Technical Specifications
| Model | SMT-SBZ160 |
|---|---|
| Stack height | 17~100mm |
| Stator I.D | Φ25~ Φ100mm |
| Stator O.D | ≤Φ160mm |
| Height of overhang | ≤40mm |
| Lacing mode | Slot by slot/Interval slot/Fancy slot |
| Lacing speed | ≈0.45s/s |
| Power supply | 380V/50/60Hz 3.5Kw |
| Weight | ≈800Kg |
| Dimension | (L)1500×(W)650×(H)1700mm |
Key Advantages
- Servo driven system with CNC control design and HIM program
- Programmable lacing modes including slot, interval, and fancy lacing
- Servo-controlled main spindle with adjustable rotation speed
- Dual servo-driven needles for simultaneous upper and lower coil lacing
- Automatic thread feeding and cutting system eliminates knot tying
- Quick tooling change capability
- Wide stator stack length range (50-130mm)
Machine Characteristics
- Industrial PLC with human-computer interface and horizontal frame-structure design
- Programmable lacing methods including slot-by-slot, interval, and fancy lacing
- Ideal for large stators with high winding over-hang
- Movable tooling for fast stator loading/unloading, reducing labor intensity
- Safety grating protection system with two-hand start button operation
- Production capacity: ≤30s/pc for 24 slots
- Primary qualification rate ≥99.5%, ≥99.9% after rework
OEM/ODM Services
We specialize in motor machinery production including automatic winding machines, lacing machines, inserting machines, shaping machines, and forming machines. Utilizing advanced technology and processes, we enhance electromechanical automation with stable quality and exceptional customer service.
Production Line Profile
SMT provides comprehensive technical consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, staff training, and complete project solutions.
