Small Motor Automatic Coil Inserting Machine For Stator

Small Motor Automatic Coil Inserting Machine For Stator

  • High Light

    Wedge Inserting Machine

    ,

    Stator Winding Inserting Machine

    ,

    Automatic Coil Inserting Machine For Stator

  • Name
    SMT-K90 Small Motor Automatic Coil Inserting Machine For Stator
  • Model
    K90
  • Stator I.D.
    ≤160mm
  • Stator O.D.
    ≤180mm
  • Height Of Edge Folded
    3-10mm
  • Power Supply
    380V/50/60Hz 3Kw
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-k90
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box
  • Delivery Time
    5 - 10 weeks
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 6 - 10 weeks

Small Motor Automatic Coil Inserting Machine For Stator

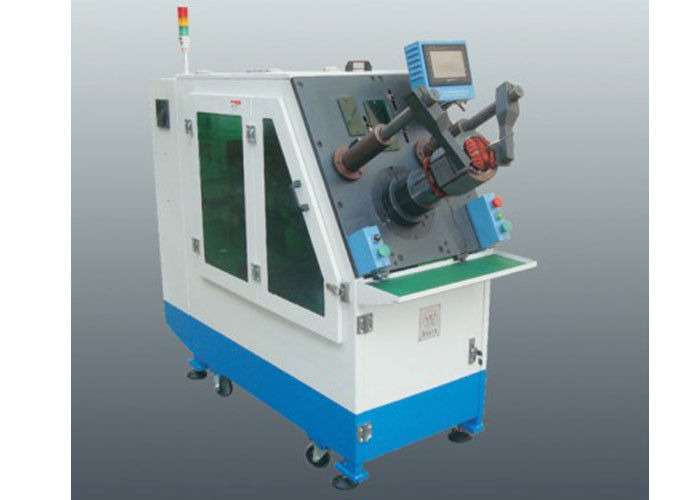

SMT-K90 Small Motor Automatic Coil Inserting Machine for Stator





(1) Main Technical Data



Model K90
Stator I.D. 20-100mm
Stator O.D. ≤160mm
Stack Height ≤120mm
Tooling Travel ≤70mm
Appropriate Wire Copper Wire / Aluminium Wire
Slot number range 8-48slot
Power Supply 380V/50/60Hz 3Kw
Weight 850kgs
Machine dimension (L)1800*(W)650*(H)1700mm



(2) Application


The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



(6) About Us

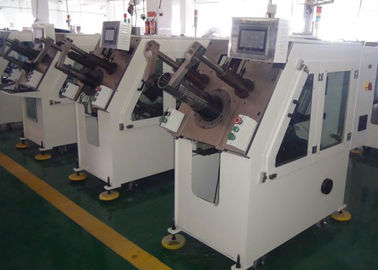

Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
