|Name:||Electric Motor Stator Coil Winding Final Forming Machine / Copper Wire / Aluminum Wire||Model:||ZZ160|
|Customized Service::||Available||Machine Size:||Middle Size|
|After-sales Service:||Engineers Available||Forming Power:||Hydraulic System|
|Warranty:||One Year||Displacement Of Cylinder:||40F|
Stator Coil Winding Machine,
electric motor winding equipment

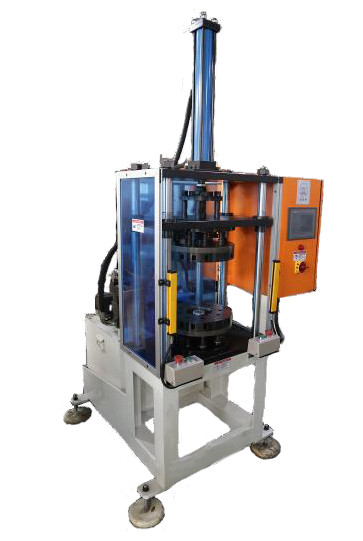

Motor Stator Coil Winding Final Forming Machine Copper Wire / Aluminum Wire SMT-ZZ160
It expands the inserted coil to leave space for the next one
1. Driven by hydraulic system;
2. PLC programming;
3.T olling expansion slice makes the first coil inserted and inter-phase insulation paper in slot adjacent,leaving enough space for second insertion and ensure the quality of successive coil insertion;
4. Apply to multi-layer stator winding insertion.
(1) Main Technical Features
|Displacement of cylinder||20F|
|Machine weight||About 700kg|
|Machine dimension (LxWxH)||650x 900 x 2300mm|
The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.
We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.
(3) Machine Main Characteristic
This machine adopts whole hydraulic system and PCL program.
This machine can adjust the forming stack length by changing washer.
Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.
Production capacity ≤13s/set (exclude loading/unloading time)
Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%
This machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.
