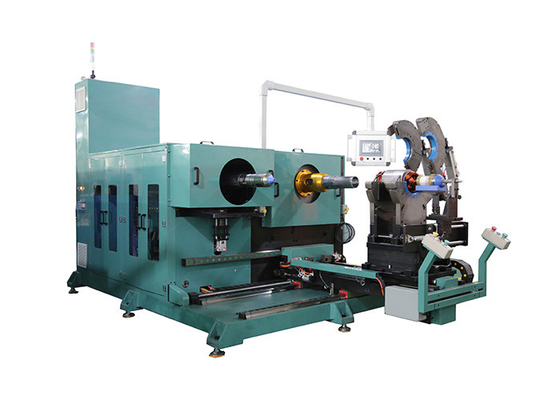

IEC3 Industry Motor Stator Winding Inserting And Coil Winding Expanding Machine

IEC3 Industry Motor Stator Winding Inserting And Coil Winding Expanding Machine

  • IEC3 Industry Motor Stator Winding Inserting And Coil Winding Expanding Machine
  • IEC3 Industry Motor Stator Winding Inserting And Coil Winding Expanding Machine
IEC3 Industry Motor Stator Winding Inserting And Coil Winding Expanding Machine
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / BV / SGS
Model Number: QKT350C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later.
Packaging Details: Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size.
Delivery Time: 3.5 months after advance payment
Supply Ability: 5~10 sets per 3.5months
Contact Now
Detailed Product Description
Name: IEC3 Industry Motor Stator Winding Inserting And Coil Winding Expanding Machine Station QTY: 2 Stations Of Inserting And Expanding
Stator OD: Φ350mm Stack Height: ≤300mm
Servo QTY: 13 Servos Driving Color: Customized
High Light:

13 Servos Winding Inserting Machine

,

13 Servos Stator Coil Inserting Machine

,

Coil Winding Expanding Machine

IEC3 Industry Motor Stator Winding Inserting and Coil Winding Expanding Machine



Coil Winding Inserting and Expanding Machine has two stations, one station for coil inserting, one station for coil expanding, used for 3-phase winding insertion with 3-times of coil insertion. Two stations are combined together by guide way, the stator holding fixture with cuff supports for coil protection.



(1) Technical Parameters of Coil Inserting and Expanding Machine



Stator Winding Inserting and Coil Winding Expanding Machine

Model

SMT-QKT350C

Stator I.D

≥Φ118mm

Stator O.D

≤Φ350mm

Stack height

50~300mm

Tooling Stroke

≤300mm

Compatible wire

Cu / AL

Slot number range

24~48 slot

Power supply

380V/50/60Hz 6.5Kw

Weight

≈1150Kg

Dimension

(L)2380×(W)1280×(H)1700mm



(2) Main Features of Coil Inserting and Expanding Machine



A. Wedge and coil are all automatically inserted into stator;

B. Coil Inserting and Expanding Machine is driven by 13 servos, each servo controls as below:

1 Front bench moves left/right
2 Front bench moves FWD./BWD.
3 Cuff support plate flip spindle
4 Coil insertion head indexing spindle
5 Wedge depot indexing spindle
6 Copper stripper spindle
7 Fixed blades spindle
8 Wedge pushing spindle
9 Paper feeding spindle
10 Paper cutting spindle
11 Coil expander head indexing spindle
12 Coil expanding blades expanding stroke spindle
13 Coil expanding blocks expanding stroke spindle

C. PLC controller can detect fault position, with the function of fault diagnosis;

D. The speed of pushing coil is adjustable according to different wire size;

E. Operator works in standing posture;

F. Pressing the button to start the machine by both hands;

G: Stator Hold Fixture has Cuff-supports plate to protect coils;

H: There's guide way to move stator hold fixture to work on inserting or expanding stations;

I: Coil expanding has tooling with expanding blades, for better result of coil expanding.



(3) Main Allocation of Coil Inserting Machine (standard)



PLC Controller: INOVANCE (China);

Servo motor system: INOVANCE (China);

Sensor element: OMRON(Japan), AUTONICS(Korea);

Other electric elements: SCHNEIDER(France), IDEC(Japan), Delixi (China);

Ball screw: HIWIN(Taiwan)

Bearing: NSK(Japan), SKF(Sweden);

Pneumatic element: AirTAC(Taiwan);

Air source pressure: 0.5~1MPa;

Power: 13 Kw;(as per actual configuration)

Power Source: 3-phase 380V/50Hz;

Weight: ≈1000Kg;

Dimension for Ref. (mm): (L)2200×(W)1100×(H)1700;



(4) Services



We focus on developing and producing machines for different induction motors production, such as Winding machine, Coil Inserting Machine, etc.

Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.

Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be for free.

Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Proposal



With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.



(6) Details Show

IEC3 Industry Motor Stator Winding Inserting And Coil Winding Expanding Machine 0
